Gold Plated MCX Female Socket PCB Panel Mount Crimp RF Coaxial
Connector
TYPE MCX RF Connector is a kind of miniature Connectors with
snap-on Coupling. Characteristic impedance has two types: 50 and
70. The characteristic of connectors is in small volume,light
weight,concise structure, easy to use. They are widely used in the
Global position system, Digital personal computer net work, all
kinds of radio instrument, small-sized electronic equipment and
WLAN system.
MCX series RF coaxial connector is apply to the equipment which
have the requirement of weight and volume, the operation frequency
can reach 66GHz, use plug-in design, the interface size is similar
with SMB, but the volume is approximately 30% smaller, contact is
more reliable, connect is faster, which can meet the requirement of
digital communication intensively and miniaturized.
Applications of the MCX connectors are those where size, weight,
performance and ease of assembly are the driving considerations to
the final design decision. Typically, these include GPS, wireless
communications (WLAN and mobile) and automotive.
Specification
| Electrical Characteristics |
| Impedance | 50 Ohm |
| Frequency Range | DC~6GHz |
| Rated Voltage | 250 VRMS (Maximum sea-level) |
| Dielectrics Voltage-resistance | 750 VRMS (Maximum sea-level) |
| Insulation Resistance | >=2000MOhm |
| Contact Resistance | Outer conductor | <=2.5mOhm |
| Center conductor | <=5.0mOhm |
| VSMR | <=1.3 |
| Material & Mechanical Characteristics |
| Center Conductor | Male/Plug | Brass | Gold plated |
| Female/Socket | Sn-P bronze | Gold plated |
| Resilience Contact | Beryllium bronze | Nickel Plated |
| Shell / Housing | Brass,stainless steel | Nickel Plated |
| Insulators | PTFE |
| Sealing Ring | Silicone Rubber |
| Durability | 500 cycles |
| RoHS Compliant | Yes |
| Centre Contact Termination | Crimp |
| Outer Contact Termination | Crimp |
| Mating Cycles | 500Cycles |
| Contact Retention | 10N min |
| Cable Retention | 100N min |
| Mating Force | 13.6N max |
| Un-Coupling Force | 13.6N max |
Environmental Specification:
| Operating Temperature | -30 to +70 Deg C |
| IP Rating ( Mated ) | IP64 |

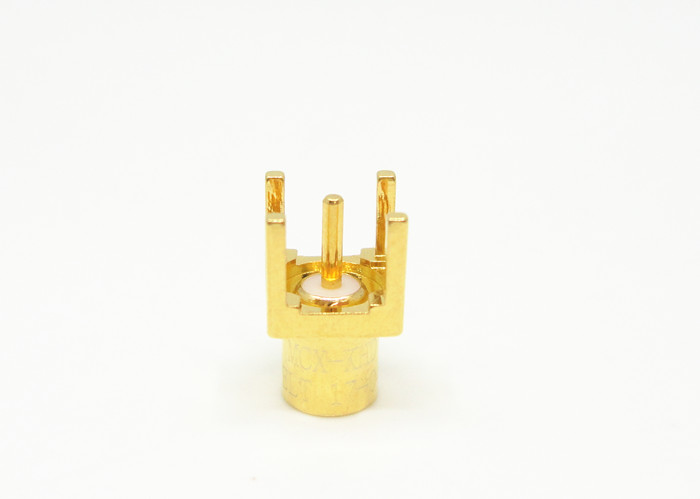

Product Drawing:
Features:
- Quick connect/disconnect snap-on mating reduces installation time
- Accommodates a wide range of miniature RG flexible semi-rigid
coaxial cables
- MCX connectors are available in straight or right angle versions,
as well as, bulkhead, 2 hole panel, 4 hole panel or mountless
options.
- Low cost combined with high quality.
- Broadband performance with low reflection from DC to 6 GHz.
- 50 Ohm impedance
- Available for affixement to industry standard cable and as a
printed circuit board device
- Provide repeatable performance
Application:
- Wireless industries
- Communication equipment
- Measurement equipment
- Antennas
- Base stations
- Telecom
- Computers
- Networks
- Instrumentation
- Test and measurement
- High-speed cable modems
- Satcom
- PC/LAN
- Automotive(GPS)
- Broadcast
NOTE:
We have over 10,000 types of interconnect
products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP
ect.),), if the connector you are using is not found, please
contact us with your details.
