    Top Grade MCX RF Connector Female Right Angle PCB Mount RF Connector

    Ask Lasest Price
    Brand Name : ELT (Elite)
    Model Number : MCX-KWHD
    Certification : CE ROHS
    Price : Negotiable
    Payment Terms : L/C, T/T
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Top Grade MCX RF Connector Female Right Angle PCB Mount RF Connector

    MCX Connector High Quality Manufacturer MCX Female Right Angle PCB Mount RF Connector

    Top Grade MCX RF Connector Female Right Angle PCB Mount RF Connector
    MCX series RF coaxial connector is apply to the equipment which have the requirement of weight and volume, the operation frequency can reach 6GHz, use plug-in design, the interface size is similar with SMB, but the volume is approximately 30% smaller, contact is more reliable, connect is faster, which can meet the requirement of digital communication intensively and miniaturized.
    Features & Benefits:
    1, Broadband performance with low reflection DC tp 6 GHz
    2, Quick connect/disconnect snap-on mating reduces installation time
    3, Accommodates a wide range of miniature RG flexible semi-rigid coaxial cables
    4, MCX connectors are available in straight or right angle versions, as well as, bulkhead, 2 hole panel, 4 hole panel or mountless options.

    Electrical Characteristics
    Impedance
    50Ω
    Frequency Range
    DC~6GHz
    Rated Voltage
    250VRMS
    Dielectrics Voltage-resistance
    750VRMS
    Insulation Resistance
    ≥2000MΩ
    Contact Resistance
    Inner conductor
    ≤5mΩ
    Outer conductor
    ≤2.5mΩ
    VSWR
    ≤1.3
    Detailed Images
    Top Grade MCX RF Connector Female Right Angle PCB Mount RF Connector
    Model Number
    L1
    L2
    L3
    D
    MCX-KWHD
    9.5
    9.9
    3.9
    1.4
    MCX-KWHD1
    9.5
    7.9
    1.9
    1.3
    MCX-KWHD2
    9.5
    9.9
    2.9
    1.4
    MCX-KWHD100
    11
    9.5
    2.9
    1.4

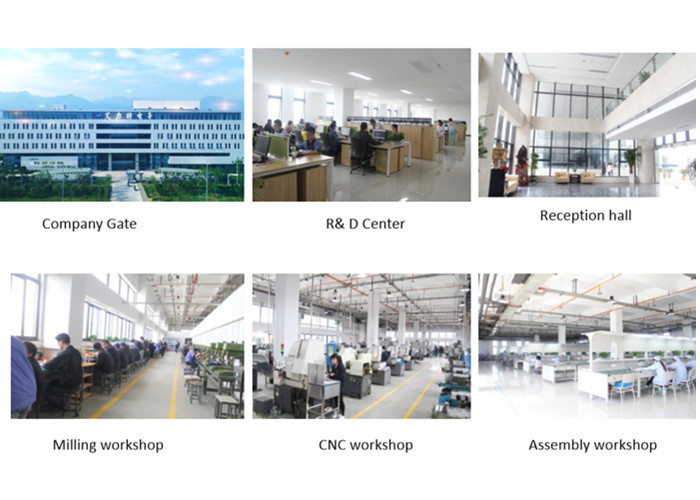

    Factory Overview
    Top Grade MCX RF Connector Female Right Angle PCB Mount RF Connector

    Top Grade MCX RF Connector Female Right Angle PCB Mount RF Connector

    Q1: Are you trading company or manufacturer ?
    A: We are manufacturer with over 15 years experience.

    Q2: What products can you provide currently?
    A: RF Connectors/ adapters/ cable assemblies, wave-guide adapters/ cable assemblies, integrated connector, low frequency products and microwave rotary joints, etc.

    Q3: Is free sample available?
    A: Yes, if have stock, free sample is available with freight collected.

    Q4: Can your company accept customize?
    A: ODM is welcomed.With more than 15 years experience in ODM, Elite Electronic can assist in design, product development, research & development and integration of your interconnect products.

    Q5: What are the Payment Terms ?
    A: We can accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T), etc.

    Q6: What is the lead time?
    A: 5 days for sample orders, 6-7 weeks for mass production orders (based on different quantities, ODM , etc.)

    Q7: How will you deliver goods to me?
    A: Generally, we cooperate with international expresses such as DHL, UPS, FedEx, TNT to enable our customers to get their goods rapidly but with the lowest freight. Meanwhile, ship by air and by sea is also available.

    Q8: How long do I need to wait before my goods arrive?
    A: 5-8 workdays for air transportation, 3-8 workdays for international express.

    Q9: How is your product quality?
    A: As the high-quality suppliers of China Spacecraft Shenzhou nine and many other national high-tech projects, providing excellent products is our way of development. We have a strong quality control team and very strict process to guarantee our quality according to military and commercial standard.

    Q10: What is your warranty?
    A: Our warranty is 3 months after delivery, Elite Electronic pays high attention to after-sales service.

    NOTE:
    We have over 10,000 types of Connector, if the connector you are using is not found, please contact us with your detai
    ls.
