SMP Male Airtight Hermetic Sealed Limited Detent Interface Depth
2.79 RF Connector
SMP is divided into three types of interfaces: Smooth bore, half
escapement and full escapement according to different connection
holding force to meet different application requirements:
1,Smooth bore interface with minimum connection holding force,
allowing axial and radial misalignment, often used for blind
connection or non-precision type measurement.
2, full escapement interface (Full detent), the best connection
holding force, anti-vibration, shock performance is the best.
Because it is not easy to remove the connection, even though the
stability is very high, it will greatly affect the service life and
convenience of the product, so it is often used for cable
connection.
3, half escapement interface, also known as limited escapement
interface (Limited detent), a combination of the advantages of
light hole and full escapement, high test stability, suitable for
precision-type measurement.
| General Specification for SMP Connector Adapter |
Impedance | 50Ω |
Frequency Range | DC~40GHz |
Rated Voltage | 170VRMS(at sea level) |
Dielectrics Voltage-resistance | 500VRMS(at sea leavel) |
Insulation Resistance | ≥5000MΩ |
Contact Resistance | Outer conductor | normal≤2.5mΩ, hermetically sealed ≤4mΩ |
Center conductor | normal≤6mΩ, hermetically sealed ≤26mΩ |
| Frequency Range | DC~18GHz | 18~26.5GHz | 26.5~40GHz |
| VSWR for straight connector | ≤1.25 | ≤1.3 | ≤1.4 |
| VSWR for right angel connector | ≤1.3 | | |
| VSWR for adapter | ≤1.25 | ≤1.3 | ≤1.4 |
| VSWR other | ≤1.3 | | |
| Center Conductor | Male | Tin Phosphor Bronze/Kovar Alloy | gold plated |
| Female | beryllium bronze | gold plated |
Elastic Contact | beryllium bronze | gold plated |
Shell and other Metal Parts | brass/beryllium bronze/Kovar Alloy/copper alloy, stainless steel
passivated |
Insulators | glass sintering/PTFE/PEI |
Leakage Rate for hermetically sealed connector | 1.01325×10-3 Pa·cm3 /s |
Features:
* Ability to withstand radial/axial misalignment
* Board-mount, field-replaceable, bullets, hermetic and cable
connector configurations
* Custom connectors available
Outline Drawing of
SMP Male Airtight Hermetic Limited Detent Interface Depth 2.79 RF
Connector
Related SMP Hermetically Sealed Connectors
1.
| SMP(M)-JHD160-JH | Male Limited Detent | Hermetic, interface depth 18 bondable |
2.
| SMP(M)-JHD199-JH | Male Limited Detent | Hermetic, Interface depth 1.7 Bondable |
3.

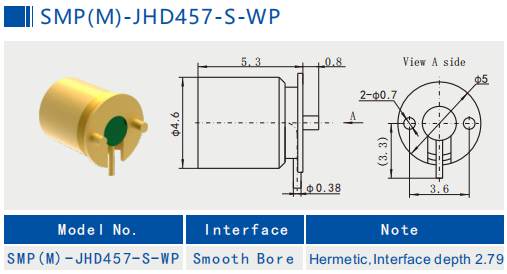

| SMP(M)-JHD457-S-WP | Male Smooth Bore | Hermetic, Interface depth 2.79 |
4.
| SMP(M)-JHD487-WP | Male Limited Detent | Hermetic, Interface depth 2.79 |
5.
| SMP(M)-JHD618-S-WP | Male Smooth Bore | Hermetic, Interface depth 2.79 |
Install Introduction:
NOTE:
We have over 1,000 types of SMP female male adapters for choice, if the product you are using is not found,
please contact us for full catologs. Custom dimensions is accepted.
