SMP Female Right Angle Connector for Semi Rigid/Flexible Cable
SMP RF Connector Introduction
SMP is a miniature push-on RF coaxial connector adapter, which has
the characters of small volume, light weight, excellent seismic
performance, and widely working broadband,etc. Operating frequency
up to 30GHz (our product of high performance SMP connector can reach 40GHz), and the plug has three interface form with full detent, limited
detent and smooth bore (including with catcher mitt).
Various interface forms can satisfy the required axial or radial
movement of blind mating in the couple usage of broad to broad
connec tors.
Apply for the install situation with the requirement of high
reliability modular intensive.
SMP cables are available from Xi'an Elite Electronic in standard or
custom lengths with a variety of the most popular connector and
coax options. Our SMP cables connector 2 series standard options
include: 2.92mm, BMA, Mini SMP, N, SMA and SMP in right angle and
straight designs and with female, male, female or jack, male, plug
genders.
| General Specification for SMP Connector Adapter |
Impedance | 50Ω |
Frequency Range | DC~40GHz |
Rated Voltage | 170VRMS(at sea level) |
Dielectrics Voltage-resistance | 500VRMS(at sea leavel) |
Insulation Resistance | ≥5000MΩ |
Contact Resistance | Outer conductor | normal≤2.5mΩ, hermetically sealed ≤4mΩ |
Center conductor | normal≤6mΩ, hermetically sealed ≤26mΩ |
| Frequency Range | DC~18GHz | 18~26.5GHz | 26.5~40GHz |
| VSWR for straight connector | ≤1.25 | ≤1.3 | ≤1.4 |
| VSWR for right angel connector | ≤1.3 | | |
| VSWR for adapter | ≤1.25 | ≤1.3 | ≤1.4 |
| VSWR other | ≤1.3 | | |
| Center Conductor | Male | Tin Phosphor Bronze/Kovar Alloy | gold plated |
| Female | beryllium bronze | gold plated |
Elastic Contact | beryllium bronze | gold plated |
Shell and other Metal Parts | brass/beryllium bronze/Kovar Alloy/copper alloy, stainless steel
passivated |
Insulators | glass sintering/PTFE/PEI |
Leakage Rate for hermetically sealed connector | 1.01325×10-3 Pa·cm3 /s |

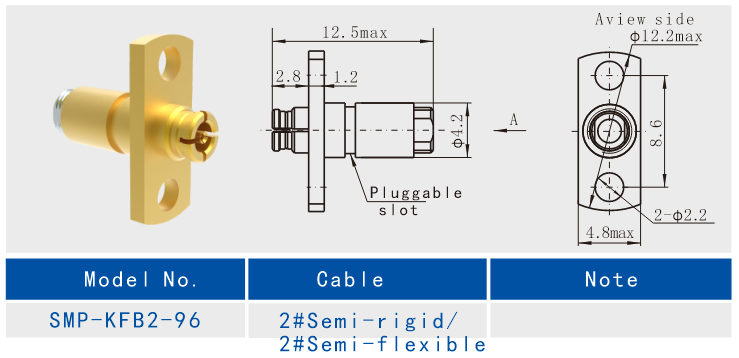

Outline Drawing of
SMP Female RF Connector
Features:
* Ability to withstand radial/axial misalignment
* Board-mount, field-replaceable, bullets, hermetic, and cable
connector configurations
* Custom connectors available
Related SMP female connectors
1.
2.
3.
4.
5.
Install Introduction:
NOTE:
We have over 1,000 types of SMP female male adapters for choice, if the product you are using is not found,
please contact us for full catologs. Custom dimensions is accepted.
