    2.4mm 2 Hole Flange Female RF Connector Jack With Cylindrical Contact 0.4mm Pin Terminal

    2.4mm Female 2-hole Flange RF Connector Jack with Cylindrical Contact and Φ0.4mm Pin Terminal


    2.4 mm High-Frequency Adapters and Connectors
    Xi'an Elite Electronic offers 2.4 mm connectors and adapters made with high performance, quality, durability, and signal integrity
    Image of Xi'an Elite Connector's 2.4 mm product line of adapters now includes a 2.4 mm high-frequency, and quick connect options. These adapters interface between 2.4 mm standard and other popular interfaces, such as 2.92 mm, SMA, and SMP. The 2.4 mm series operates up to 50 GHz and delivers a performance maximum VSWR of 1.25 and typically below 1.20. The high-frequency adapters are ideal for multiple applications.
    2.4 mm connectors are more robust than traditional SMA and 2.9 mm connectors and have a thick outer conductor, which increases the outer wall thickness and strengthens the female fingers. The thicker wall of the connector body is designed to engage prior to the center conductor creating a more ruggedized and repeatable mating interface. The interface is air dielectric with the contact supported by a short dielectric bead.


    Outline Drawing of 2.4mm Female 2-hole Flange RF Connector Jack with Cylindrical Contact and Φ0.4mm Pin Terminal:(mm)

    Specification of

    2.4mm Female 2-hole Flange RF Connector Jack with Cylindrical Contact and Φ0.4mm Pin Terminal(mm):

    Electrical Characteristics
    Impedance
    50Ω
    Frequency Range
    DC~50GHz
    Rated Voltage
    170VRMS (Maximum sea-level)
    Dielectrics Voltage-resistance
    500VRMS (Maximum sea-level)
    Insulation Resistance
    ≥5000MΩ

    Contact Resistance

    Outer conductor
    ≤2mΩ
    Center conductor
    ≤3mΩ
    VSMR
    ≤1.05+0.005f



    Detailed Drawing of

    2.4mm Female 2-hole Flange RF Connector Jack with Cylindrical Contact and Φ0.4mm Pin Terminal(mm):
    2.4mm 2 Hole Flange Female RF Connector Jack With Cylindrical Contact 0.4mm Pin Terminal
    Features


    *RF coaxial connector, supports up to 50 GHz
    *The 2.4 mm connector series was designed to eliminate the fragility of the SMA and 2.92 mm connectors by increasing the outer wall thickness and strengthening the contact pin.
    We offer a diverse line-up of products, from conversion adapters to board-mount adapters.
    *Impedance: 50 ohm
    *Frequency Range: Up to 50 GHz

    Advantages


    *Small Size
    *High Reliable
    *Good Mechanical Performance
    *Wide Frequency Range from DC to 50GHz


    Application of


    * Avionics, radars
    * Navigation systems
    * Missiles and guidance systems
    * Telecommunication systems
    * Instrumentation
    * Automotive
    * Computer/LANs
    * Telecommunications
    * Research centres
    * Satellite communications


    Related Products:

    2.4-KFD42.4mm female rf connector ,accept pin φ0.3,hole depth 1.8mm

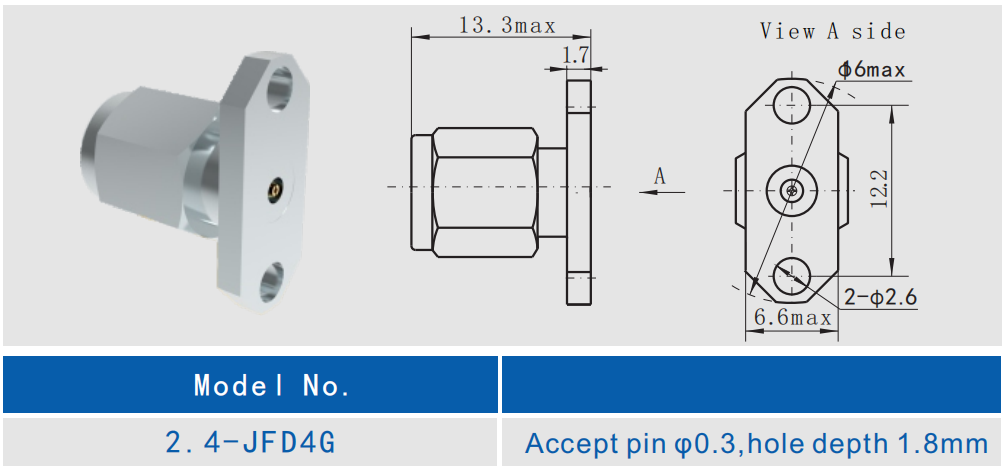

    2.4-JFD4G2.4mm male rf connector ,accept pinφ0.3,hole depth 1.8mm


    NOTE:
    We have over 10,000 types of Connector, if the connector you are using is not found, please contact us with your detai
