3.5mm Male RF Coaxial Connector Plug Millimeter Wave Cable for MF147A/MF147B

Ask Lasest Price
Brand Name :	ELT (Elite)
Model Number :	3.5-J416G
Certification :	CE Rohs ISO-9001
Price :	Negotiable
Payment Terms :	T/T, Western Union, L/C
Supply Ability :	10000 Pieces Per Month
Delivery Time :	Within in 3 weeks

Add to Cart

Product Details
Company Profile

3.5mm Male RF Coaxial Connector Plug Millimeter Wave Cable for MF147A/MF147B

3.5mm Male RF Coaxial Connector Plug Millimeter Wave Cable Connector for MF147A/MF147B

Our 3.5mm adapter PDF datasheet specifications with precise CAD drawing and dimensions are located on the product pages. 3.5mm female or male (jack or plug) adapters (sometimes called a 3.5mm cable coupler or gender changer when same genders) are available. These female or male (jack or plug) 3.5mm adapter coaxial interconnects are between series or in-series. Precision 3.5mm adapters can be found for those application requirements. Our superior quality RF adapters with 3.5mm interface are manufactured with beryllium copper, passivated stainless steel or stainless steel connector bodies.

Electrical Characteristics
Impedance	50Ω
Frequency Range	DC~33GHz
Rated Voltage	335VRMS (Maximum sea-level)
Dielectrics Voltage-resistance	1000VRMS (Maximum sea-level)
Insulation Resistance	≥5000MΩ
Contact Resistance	Outer conductor	≤2mΩ
	Center conductor	≤3mΩ
VSMR	≤1.05+0.005f

Interface Dimension(mm)

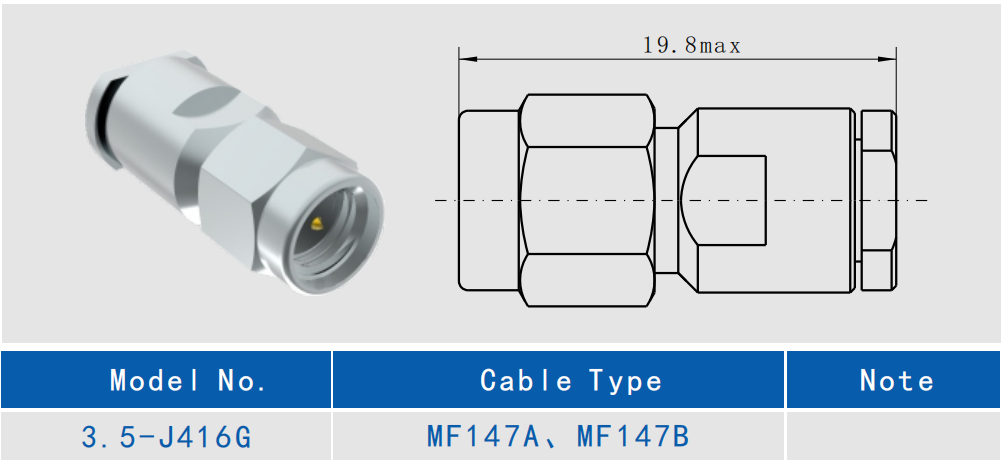

Outline Drawing:

Related products:

3.5-J417G

3.5 male stainless steel rf cable connector for CXN3449/MF503A

3.5-J506G

3.5 male stainless steel rf connector for CXN3506/MF108A

Features:

*Available in female to female, female to male, female to sexless, male to female, male to male or male to sexless gender combinations;
*33GHz 3.5mm adapter maximum frequency is provided;
*Allow to interface 3.5mm connectors with 1.85mm, 2.4mm, 2.92mm, 3.5mm, 7mm, Mini SMP, N or SSMA connectors;
*Can be Customized.
*Includes bulkhead, 4 holes panel or mountless configurations.

Applications of SMP RF Connectors:

- Antennas
- Broadband
- Aerospace

- Telecommunications

- Instrumentation
- Phased array antennas

- Board-to-board interconnect
