Right Angle 50Ohm SMPM RF Connector Full Detent Jack CXN3657/MF151A Flange Mount

Product Categories

Xi'an Elite Electronic Industry Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Add to Cart

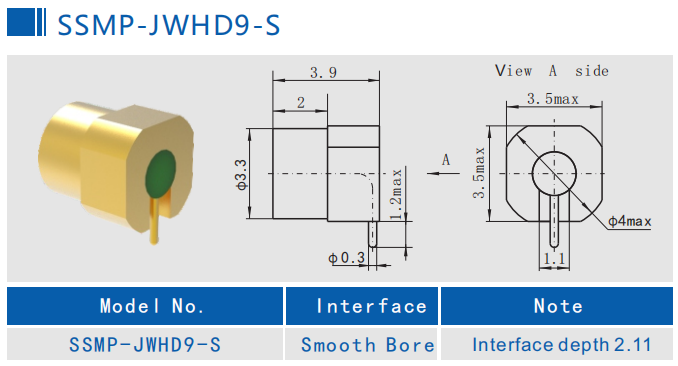

SSMP series product is an ultra-small push-in RF coaxial connector, which has the characters of small size(compared with SMP),

light weight, wide working frequency bandwidth, etc. Suitable for use in pairs of board-to-board connections, and the plug has

two interface form -full detent and smooth bore, for the situation of modular intensive mounting.

The family of RF interconnects addresses small package design needs. It can be utilized for highspeed signal transmission applications

or in blind-mate board-to-board systems using a floating bullet. This floating bullet provides a link between mated pairs and compensates for

both radial and axial misalignment.

Features

• Reliable electrical performance up to 50GHz
• Small package size
• Push-on and snap-on mating styles for quick installation

Specification

Electrical Characteristics
Impedance	50Ω
Frequency Range	DC~60GHz
Rated Voltage	85VRMS*
Dielectrics Voltage-resistance	250VRMS*
Insulation Resistance	≥2000MΩ
Center Resistance	Outer conductor		Normal≤2mΩ, Sealing≤5mΩ
	Center conductor		Normal≤6mΩ, Sealing≤25mΩ
	DC~18GHz	18~26.5GHz		26.5~40GHz	40~50GHz
VSWR	≤1.25	≤1.3		≤1.35	≤1.4
Material & Mechanical Characteristics
Center Conductor	Male		Sn-P Bronze/Kovar, Gold plated
	Female		Beryllium bronze, Gold plated
Elastic Contact	Beryllium bronze Gold plated
Shell and other Metal Parts	Brass/Kovar Gold plated Stainless steel Passivation
Insulators	Glass sintering/PTFE/PEI
Hermetic Product Leakage Rate	≤1.01325×10-3Pa·cm3/s

Application:

• Antennas

• Back Plane

• Broadband

• Wireless

• Instrumentation

Packaging Details:

* Standard Export Carton
* According to customers' requirements

NOTE:
We have over 10,000 types of SMPM Connector, if the connector you are using is not found, please contact us with your details.
