    Female Right Angle SMPM RF Connector for CXN3657/MF151A Cable

    Ask Lasest Price
    Brand Name : ELT (Elite)
    Model Number : SSMP-KW657-6
    Certification : CE ROHS
    Price : Negotiable
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : 1,000,000pcs per month
    Delivery Time : Within 3 weeks
    • Product Details
    • Company Profile

    Female Right Angle SMPM RF Connector for CXN3657/MF151A Cable

    RF Connector SSMP Female Right Angle for CXN3657/MF151A Cable

    Type SSMP is a kind of miniature RF coaxial connectors with snap-on self-latching mechanism, They are developed for modular interconnection system with denser packing requirements.The characteristic of this type is easy to connect/disconnet,light weight,vibration-proof, high frequency and high performance.

    Due to its high frequency performance along with a blind-mate configuration, the SSMP connector is a standard interface in optical networking

    components, specifically 40G and 100G Modulator and Driver amplifiers.

    Specification
    Electrical Characteristics
    Impedance50Ω
    Frequency RangeDC~50GHz
    Rated Voltage170VRMS*
    Dielectrics Voltage-resistance500VRMS*
    Insulation Resistance≥2000MΩ
    Center ResistanceOuter conductorNormal≤3.5mΩ, Sealing≤5mΩ
    Center conductorNormal≤8mΩ, Sealing≤30mΩ
    DC~18GHz18~26.5GHz26.5~40GHz40~50GHz
    VSWR≤1.25≤1.3≤1.4≤1.5
    Material & Mechanical Characteristics
    Center ConductorMaleSn-P Bronze/Kovar, Gold plated
    FemaleBeryllium bronze, Gold plated
    Elastic ContactBeryllium bronze Gold plated
    Shell and other Metal Parts

    Brass/Kovar Gold plated

    Stainless steel Passivation

    InsulatorsGlass sintering/PTFE/PEI
    Hermetic Product Leakage Rate≤1.01325×10-3Pa·cm3/s

    Features

    - Frequency Range: DC - 50 GHz
    - 50 Ω Impedance; Blindmateable configuration
    - Ability to withstand Radial/Axial Misalignment
    - Board-mount, Field-replaceable, Bullets, Hermetic and Cable Connector configurations
    - Custom Connectors Available

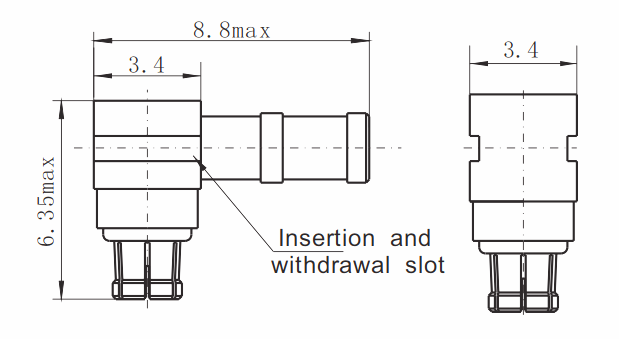

    Detailed Drawing

    Application:


    * Network

    * Satcom

    * Computer/LANs

    * Base Station

    * Outdoor facilities

    * Automotive

    * Jump line join

    * Basic facility

    * Radar,microwave

    * Telecommunications

    * Mobile communication

    * Instrumentation

    * Radio, TV aerial system


    Related Products:

    SSMP Female Right Angle Cable ConnectorCable type: CXN3506/MF108A

    Product Cataloge:


    RF Adapter
    Waveguide to Coaxial Adapter
    Glass-to-metal Hermetic Seals
    J30J Series Connector
    Microwave Rotary Joints
    RF Cable Assemblies
    SMA/SSMA RF Connector
    SMP/SSMP RF Connector
    MCX/MMCX RF Connector
    TNC RF Connector
    N Type RF Connector
    BNC RF ConnectorMillimeter Wave Connectors(2.4mm, 2.92mm)

    Packaging Details:


    * Standard Export Carton
    * According to customers' requirements


    NOTE:
    We have over 10,000 types of SMPM Connector, if the connector you are using is not found, please contact us with your detai
    ls.
