    SSMP Female RA Rotatable Flange Mount RF Cable Connector for CXN3506/MF108A

    SSMP Female Right Angle(RA) Rotatable Flange Mount RF Cable Connector for CXN3506/MF108A

    SMPM, also known as SSMP series are a high frequency push-on connector with its interfacing system featuring an inner female-to-female component, called a bullet or blindmate and two outer panel, circuit or cable-mounted receptacles called shrouds. SMPM connectors are typically available up to 50GHz.

    The male connector is available in Smooth Bore (SB) for easy connection and disconnection, Limited Detent (LD) providing a level of insertion and withdrawal force, and Full Detent (FD) requiring substantial insertion and withdrawal forces.

    Specification
    Electrical Characteristics
    Impedance50Ω
    Frequency RangeDC~50GHz
    Rated Voltage170VRMS*
    Dielectrics Voltage-resistance500VRMS*
    Insulation Resistance≥2000MΩ
    Center ResistanceOuter conductorNormal≤3.5mΩ, Sealing≤5mΩ
    Center conductorNormal≤8mΩ, Sealing≤30mΩ
    DC~18GHz18~26.5GHz26.5~40GHz40~50GHz
    VSWR≤1.25≤1.3≤1.4≤1.5
    Material & Mechanical Characteristics
    Center ConductorMaleSn-P Bronze/Kovar, Gold plated
    FemaleBeryllium bronze, Gold plated
    Elastic ContactBeryllium bronze Gold plated
    Shell and other Metal Parts

    Brass/Kovar Gold plated

    Stainless steel Passivation

    InsulatorsGlass sintering/PTFE/PEI
    Hermetic Product Leakage Rate≤1.01325×10-3Pa·cm3/s

    Features

    * Frequency Range: DC - 50GHz
    * 50Ω Impedance; Blindmateable configuration
    * Ability to withstand Radial/Axial Misalignment
    * Board-mount, Field-replaceable, Bullets, Hermetic and Cable Connector configurations
    * Custom Connectors Available

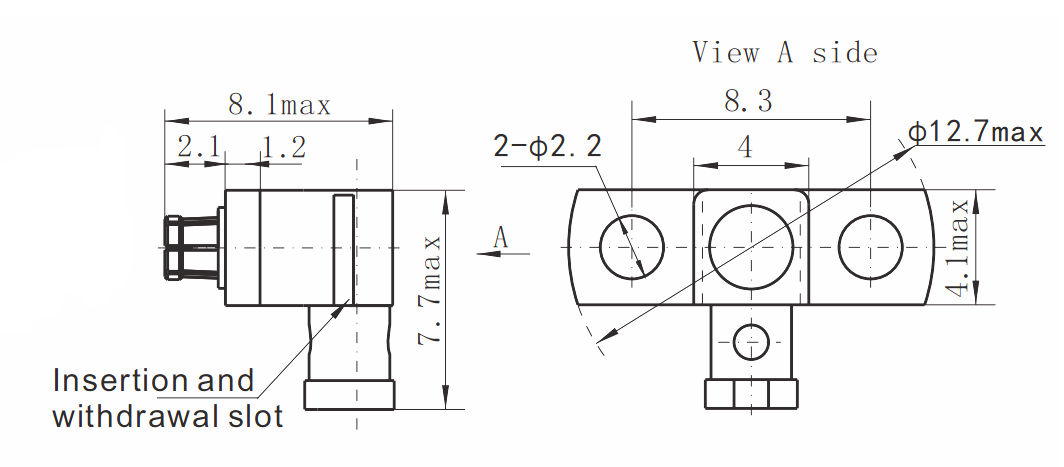

    Detailed Drawing

    Application:


    SMPM connectors are specifically designed for interconnecting board-to-board applications, typically found in drawers and racks of microwave-band and high grade commercial systems such as in phased arrays, airborne radar, active antennas, satellites and a range of other radar systems.
