    SUS Female 2.92mm RF Connector for CXN3506/MF108A Cable

    Ask Lasest Price
    Brand Name : ELT
    Model Number : K-J506G
    Certification : CE,ROHS
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 35000pcs/year
    Delivery Time : Within 3 weeks
    • Product Details
    • Company Profile

    SUS Female 2.92mm RF Connector for CXN3506/MF108A Cable

    Stainless Steel K(2.92mm) Female RF Coaxial Connector for CXN3506/MF108A Cable


    The 2.92mm coaxial female connector of Xi'an Elite Electronics is part of a very wide selection of RF interconnect components. The 2.92mm coaxial line bus connector of Xi'an Elite Electronics includes a bus type with 50Ohm impedance level. Our coaxial cable 2.92mm female connector has standard polarity design, including diaphragm type, 4-hole flange type and bracket free type.


    The 2.92mm female connector product series for coaxial cables provides a variety of connection methods for clamping/non welding contact, clamping/welding, welding and welding/non welding contact. 2.92mm female connector for coaxial cable Compatible cable types include 2 # Semirigid/flexible/CXN3506/CXN3507/MF108A/MF363A


    Specification:

    Impedance50Ω
    Frequency RangeDC - 40GHz
    Voltage Rating250 VRMS (Max. Sea Level)
    Dielectric Withstanding Voltage750 VRMS (Max. Sea Level)

    Voltage Standing Wave Ratio
    VSWR

    ≤ 1.05 + 0.005f
    Contact ResistanceCenter Conductor ≤ 3.0 mΩ
    Outer Conductor ≤ 2.0 mΩ
    Insulation Resistance≥ 5000 MΩ
    Inner ConductorMale plug: Brass, Gold Plated
    Female Jack: Beryllium bronze, Gold Plated
    Body / Shell / Housing

    Brass, Gold Plated, Stainless Steel, Passivated

    InsulatorPEI/PLF
    GasketSilicone Rubber
    Temperature-55℃ ~ +125℃
    Durability500 Cycles
    Torque0.79 ~ 1.13 N.m


    Features:
    *High performance up to 40GHz
    *Low VSWR
    *Excellent return loss and insertion loss
    *Ruggedized construction for repeatability
    *Compitable to mate with SMA, 3.5 mm and other K or 2.92 mm connectors


    Application:

    *Optical test

    *Laboratory and bench testing

    *SATCOM

    *Microwave

    *Quantum computing


    Related products:

    K-K506GK female right angle stainless steel for CXN3506/MF108A

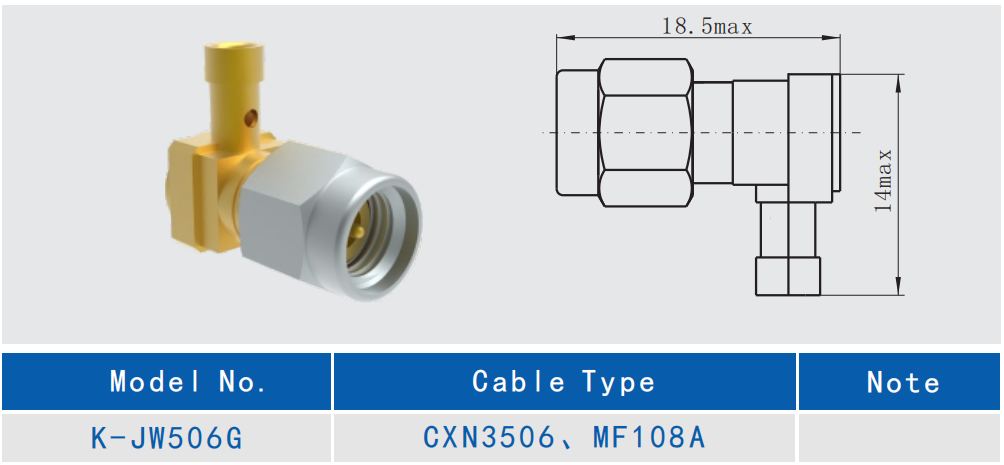

    K-JW506GK male stainless steel for CXN3506/MF108A cable
