    Mini SMP Female to Female SSMP RF Connector Adapter Gold Plated

    Mini SMP Female to Female SSMP RF Connector Adapter Gold Plated

    Introduction

    SSMP is a kind of miniature push in RF coaxial connector, which has the characteristics of small size (compared with SMP), light weight, wide working range, etc. It is applicable to the coupling use of board to board connectors and the occasion of intensive modular installation. The plug has two types of interface: full thread and non threaded hole.

    The speciications below are general specifications for all SSMP connectors. Specific specifications for VSWR, Insertion loss, and RF leakage for each connector is available from the factory upon request. Specifications in the following table are recommanded for any procurement documents or drawings.

    Specification:
    Electrical Characteristics
    Impedance50Ω
    Frequency RangeDC~50GHz
    Rated Voltage170VRMS*
    Dielectrics Voltage-resistance500VRMS*
    Insulation Resistance≥2000MΩ
    Center ResistanceOuter conductorNormal≤3.5mΩ, Sealing≤5mΩ
    Center conductorNormal≤8mΩ, Sealing≤30mΩ
    DC~18GHz18~26.5GHz26.5~40GHz40~50GHz
    VSWR≤1.25≤1.3≤1.4≤1.5

    Material & Mechanical Characteristics:

    Central contact.

    Males. Sn-P bronze/Kovar, gold plated

    Parent body: beryllium bronze, gold plated

    Elastic contact: gold plated beryllium bronze

    Body and other metal parts. Brass/Kovar Gold Plated


    Product Drawing:


    Features:

    -Low VSWR through 40 GHz(SMP)/50 GHz(SMPM)
    -Female cable connector options available for all flexible cable types .086” diameter and smaller
    -All standard SMP/SMPM male connector options available upon request
    -Low insertion/extraction forces, compared to standard full detent SMP and SMPM, mean less torque on board mount connector solder joints during mating and demating
    -Spring loaded positive mating feature allows excellent electrical performance even in extreme vibration environments
    -Low mating forces allow for more mating cycles without failure compared to full detent SMP and SMPM​


    Application:


    Bench-top testing (PCB mount, cable connectors and adapters)
    High vibration environments
    Applications requiring a high number of mating cycles
    High quality and Commercial options available


    Related products:

    SSMP Female to Female RF AdapterLength=15.55mmDiameter=φ2.79 max


    SSMP Female to Female RF AdapterLength=4.55mmDiameter=φ2.79 max

    SSMP Female to Female RF AdapterLength=23.1mmDiameter=φ3.05

    SSMP Female to Female RF AdapterLength=8.6mmDiameter=φ2.79 max

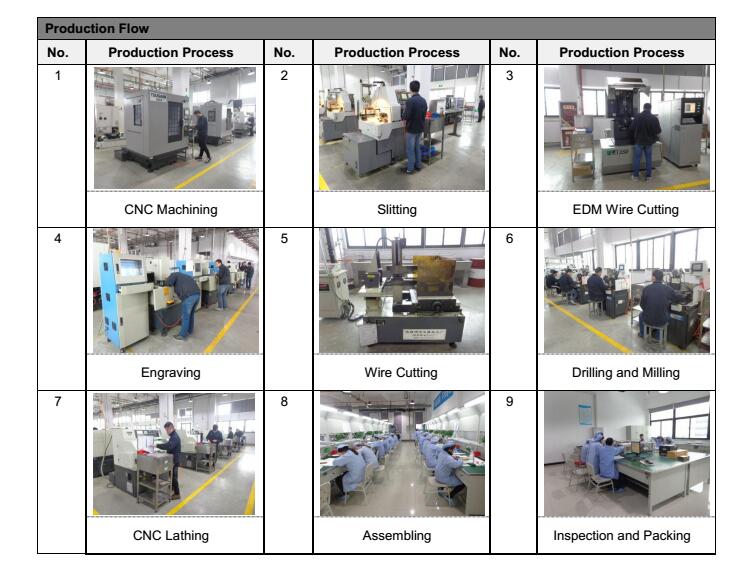

    Factory& Production Line:

    Xi'an Elite Electronic is a product and solution provider, the company provides high quality, high performance, cable assembly/connector products. Xi'an Elite Electronic engages in R&D, for telecom and electronics products with a focus on RF cable assemblies/connectors, high speed interconnect cable assemblies/connectors, and high-end test/calibration products. The company has the capacity of product design, engineering service, low-cost production/sourcing, assembly, and testing.


    NOTE:

    We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
