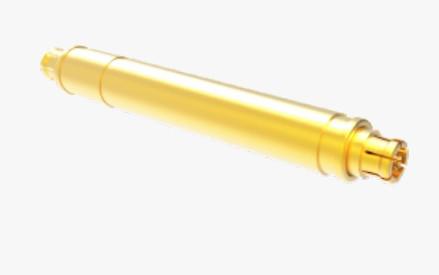

CSMP Female to Female RF Coaxial Connector In Series Adapter 17.9mm

Ask Lasest Price
Brand Name :	ELT (Elite)
Model Number :	CSMP-KK62
Certification :	CE ROHS
Price :	Negotiable
Payment Terms :	Western Union, L/C, T/T
Supply Ability :	1,000,000pcs per month
Delivery Time :	Within 3 weeks

Add to Cart

Product Details
Company Profile

CSMP Female to Female RF Coaxial Connector In Series Adapter 17.9mm

CSMP is a miniature push in RF coaxial connector, which has the characteristics of small volume (compared with SSMP), light weight and wide working bandwidth. It is suitable for the use of board to board connectors in pairs and for the case of modular intensive installation. The plug has two interface forms: full pawl and no threaded hole.

Features

Avionics, radar

Missiles and guidance systems

On board equipment

Telecommunication system

Specification

Electrical Characteristics
Impedance	50Ω
Frequency Range	DC~65GHz
Rated Voltage	85VRMS*
Dielectrics Voltage-resistance	250VRMS*
Insulation Resistance	≥2000MΩ
Center Resistance	Outer conductor		Normal≤3.5mΩ, Sealing≤5mΩ
	Center conductor		Normal≤8mΩ, Sealing≤30mΩ
	DC~18GHz	18~26.5GHz		26.5~40GHz	40~50GHz
VSWR	≤1.2	≤1.25		≤1.35	≤1.4
Material & Mechanical Characteristics
Center Conductor	Male		Sn-P Bronze/Kovar, Gold plated
	Female		Beryllium bronze, Gold plated
Elastic Contact	Beryllium bronze Gold plated
Shell and other Metal Parts	Brass/Kovar Gold plated Stainless steel Passivation
Insulators	Glass sintering/PTFE/PEI
Hermetic Product Leakage Rate	≤1.01325×10-3Pa·cm3/s

Application:

*Satellite communication

*Network

*PC / LAN

*Base station

*Outdoor facilities

*Instrumentation

*Automobile

*Jumper insertion

*Basic facilities

*Radar, microwave

*Telecommunications

*Mobile communication

*Radio and television antenna system

Product Cataloge:

RF Adapter

Waveguide to Coaxial Adapter

TNC RF Connector

N Type RF Connector

Microwave Rotary Joints

RF Cable Assemblies

SMA/SSMA RF Connector

SMP/SSMP RF Connector

MCX/MMCX RF Connector

J30J Series Connector

Glass-to-metal Hermetic Seals

BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm)

Packaging Details:

* Standard Export Carton
* According to customers' requirements

NOTE:
We have over 10,000 types of SMPM Connector, if the connector you are using is not found, please contact us with your details.

Related 65GHz CSMP male hermetically sealed connector:

Model number	L	Description
CSMP(M)-JHD	0.75	CSMP male full detent hermetically sealed connector
CSMP(M)-JHD-S	0.75	CSMP male smooth bore hermetically sealed connector
CSMP(M)-JHD24	1.2	CSMP male full detent hermetically sealed connector

Model number	Description
CSMP-JHD1	CSMP male full detent hermetically sealed connector
