CSMP Female Cable Connector For UT-034 Cable Power Connector

    Buy cheap CSMP Female Cable Connector For UT-034 Cable Power Connector from wholesalers

    Buy cheap CSMP Female Cable Connector For UT-034 Cable Power Connector from wholesalers
    • Buy cheap CSMP Female Cable Connector For UT-034 Cable Power Connector from wholesalers
    • Buy cheap CSMP Female Cable Connector For UT-034 Cable Power Connector from wholesalers

    CSMP Female Cable Connector For UT-034 Cable Power Connector

    Ask Lasest Price
    Brand Name : ELT (Elite)
    Model Number : CSMP-KB04
    Certification : CE ROHS
    Price : Negotiable
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : 1,000,000pcs per month
    Delivery Time : Within 3 weeks
    • Product Details
    • Company Profile

    CSMP Female Cable Connector For UT-034 Cable Power Connector

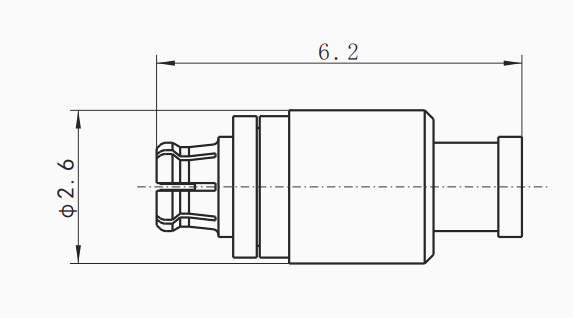

    CSMP Female Cable Connector for UT-034 Cable Power Connector

    The CSMP is a miniature push-in RF coaxial connector with the characteristics of small size (compared to the SSMP), light weight and wide working band. It is suitable for use in pairs of board-to-board connectors, as well as modular intensive installations. There are two types of plugs: full claw and unthreaded hole.

    Features

    Avionics, radar

    Missiles and guidance systems

    On board equipment

    Telecommunication system


    Specification
    Electrical Characteristics
    Impedance50Ω
    Frequency RangeDC~60GHz
    Rated Voltage85VRMS*
    Dielectrics Voltage-resistance250VRMS*
    Insulation Resistance≥2000MΩ
    Center ResistanceOuter conductorNormal≤2mΩ, Sealing≤5mΩ
    Center conductorNormal≤6mΩ, Sealing≤25mΩ
    DC~18GHz18~26.5GHz26.5~40GHz40~50GHz
    VSWR≤1.25≤1.3≤1.35≤1.4
    Material & Mechanical Characteristics
    Center ConductorMaleSn-P Bronze/Kovar, Gold plated
    FemaleBeryllium bronze, Gold plated
    Elastic ContactBeryllium bronze Gold plated
    Shell and other Metal Parts

    Brass/Kovar Gold plated

    Stainless steel Passivation

    InsulatorsGlass sintering/PTFE/PEI
    Hermetic Product Leakage Rate≤1.01325×10-3Pa·cm3/s

    Application:


    *Satellite communication

    *Network

    *PC / LAN

    *Base station

    *Outdoor facilities

    *Instrumentation

    *Automobile

    *Jumper insertion

    *Basic facilities

    *Radar, microwave

    *Telecommunications

    *Mobile communication

    *Radio and television antenna system


    Product Cataloge:


    RF Adapter
    Waveguide To Coaxial Adapter
    TNC RF Connector
    N Type RF Connector
    Microwave Rotary Joints
    RF Cable Assemblies
    SMA/SSMA RF Connector
    SMP/SSMP RF Connector
    MCX/MMCX RF Connector
    J30J Series Connector
    Glass-to-metal Hermetic Seals
    BNC RF ConnectorMillimeter Wave Connectors(2.4mm, 2.92mm)

    Packaging Details:


    * Standard Export Carton
    * According to customers' requirements


    NOTE:
    We have over 10,000 types of SMPM Connector, if the connector you are using is not found, please contact us with your detai
    ls.


    Related 65GHz CSMP male hermetically sealed connector:

    1.

    Model numberLDescription

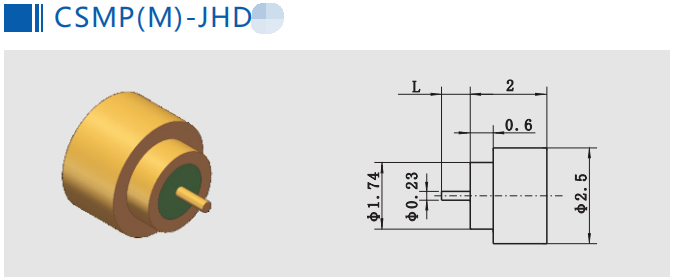

    CSMP(M)-JHD0.75CSMP male full detent hermetically sealed connector
    CSMP(M)-JHD-S0.75CSMP male smooth bore hermetically sealed connector
    CSMP(M)-JHD241.2CSMP male full detent hermetically sealed connector

    2.


    Model numberDescription

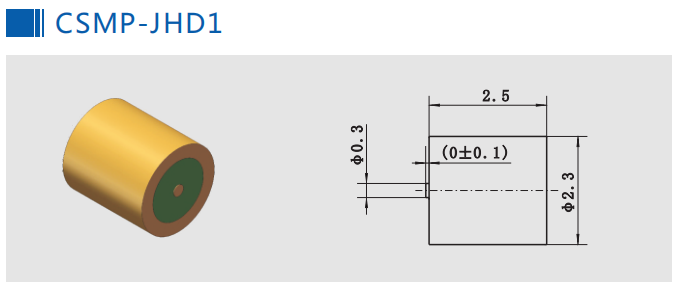

    CSMP-JHD1CSMP male full detent hermetically sealed connector
