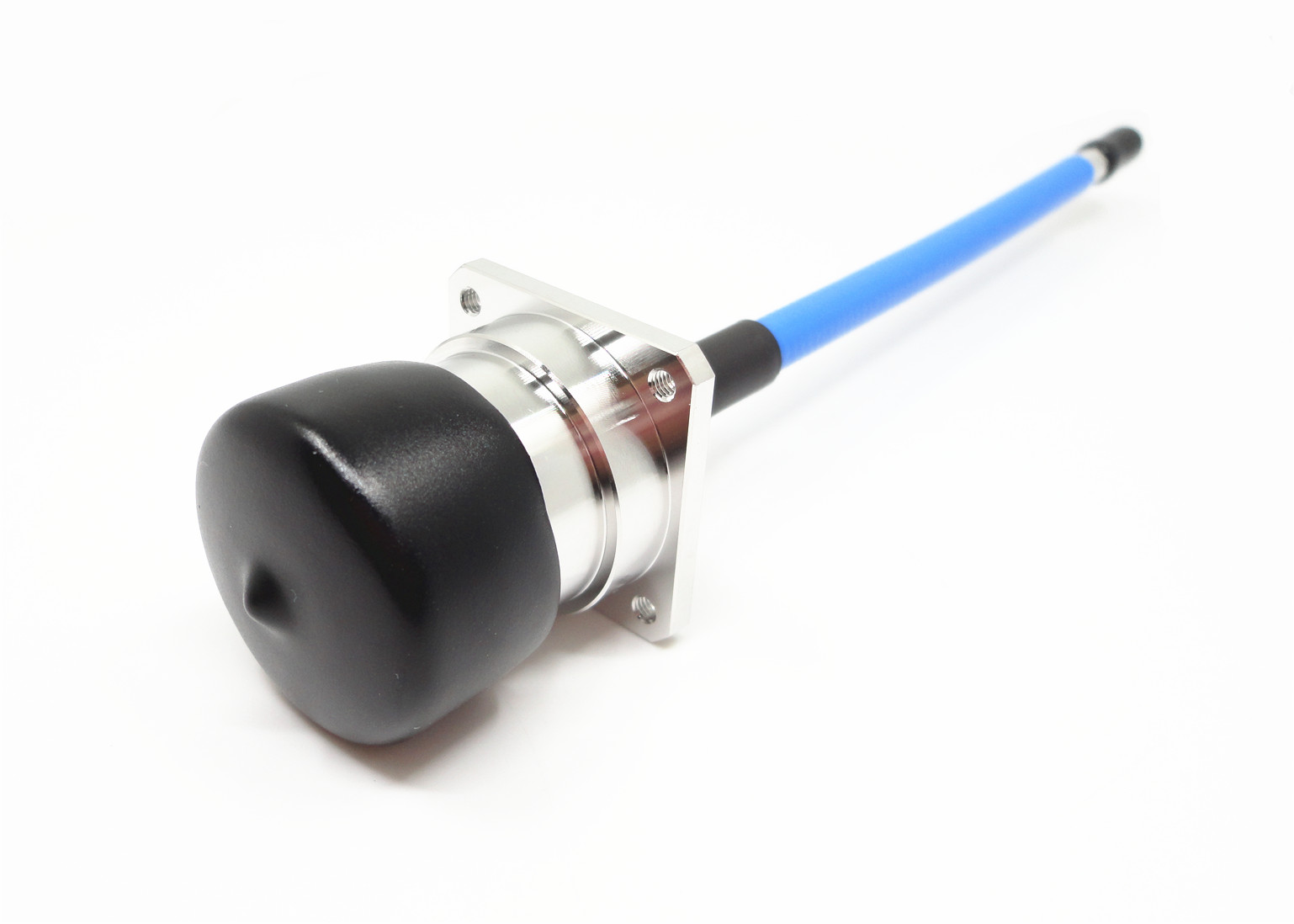

    7/16 DIN Straight Male RF Connector For .250 Coaxial Cable

    Ask Lasest Price
    Brand Name : ELT (Elite)
    Model Number : 7/16-J250-179
    Certification : CE ROHS
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 1,000,000 Pieces Per Month
    Delivery Time : Within 3 weeks
    • Product Details
    • Company Profile

    7/16 DIN Straight Male RF Connector For .250 Coaxial Cable

    7/16 DIN Straight Male RF Connector For .250 Coaxial Cable

    The name of the 7/16 series is derived from the metric dimensions of the connector interface: inner contact diameter 7mm, outer contact inner diameter 16mm. These connectors have excellent performance in terms of return loss and intermodulation distortion (IMD).


    These connectors are very strong, very stable, and are mostly WATER-resistant, making them IDEAL FOR APPLICATIONS where vibration resistance and environmental protection ARE important. Since the 7/16 connector is designed to minimize signal distortion due to intermodulation, it is particularly suitable for base stations and broadcast communication systems.


    Product Specification:


    Electrical Characteristics


    Impedance50Ohm
    Frequency rangeDC~7.5GHz
    PIM3≤161dBc
    VSWR≤1.15(0-3GHz)
    Dielectric Withstanding Voltage2700V rms
    Test voltage4000V rms

    Material & Mechanical Characteristics


    Center ConductorTin phosphor bronze, Silver Plating
    InsulatorsPTFE
    BodyBrass Ternary Alloy Plating
    Other Metal PartsBrass, Alloy Plating
    GasketSilicone Rubber

    Product Features:

    • The coaxial cable of the radio frequency components (7/16 DIN/N/TNC/BNC/FME/U.F L/IPEX L9 / SMA/SMB/MMCX MCX/OEM)


      Our custom RF cable assemblies are built in worldwide


      50 Ohm RF cable assemblies can be ordered using the following connector types, such as 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, 75 Ohm cable assemblies can be manufactured using the following 75 ohm connectors, such as BNC, F, N, SMB, SMC, TNC, and Mini SMB


      Rf cable assemblies can be produced in a variety of different connector types and custom lengths depending on your needs and applications


      If you need a special RF cable assembly configuration not found here, you can call our sales department to create your own RF cable assembly


      The RF cable assembly includes: RG141/RG142/RG174/RG178/RG179/RG180/RG187/RG196/RG1213/RG214/RG218/RG219/RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG 402/RG405/RG58/U

    Purchasing of ready-made microwave cable assembly lines provides important benefits:


    • Perfect assembly, no defective products


    • No assembler training required


    • No capital investment for assembly preparation


    • Precisely matched cables and connectors


    The same manufacturer


    • Xi 'an Elite electronic quality assurance


    Assembly shop capability:


    *Automatic stripping

    *Automatic laser stripping

    *Temperature controlled soldering

    *Clean room

    *Laser marking


    Applications:


    * Computer/LANs

    * Base Station

    * Automotive

    * Basic facility

    * Outdoor facilities

    * Radar,microwave

    * Telecommunications

    * Radio, TV aerial system


    Product Cataloge:

    RF Adapter
    RF Cable Assemblies
    Glass-to-metal Hermetic Seals
    J30J Series Connector
    Microwave Rotary Joints
    Waveguide To Coaxial Adapter
    SMA/SSMA RF Connector
    SMP/SSMP RF Connector
    MCX/MMCX RF Connector
    TNC RF Connector
    N Type RF Connector
    Millimeter Wave Connectors(2.4mm, 2.92mm)
