SMP RF Connector Introduction

SMP is a miniature push-on RF coaxial connector adapter, which has the characters of small volume, light weight, excellent seismic performance, and widely working broadband,etc. Operating frequency up to 30GHz (our product of high performance SMP connector can reach 40GHz), and the plug has three interface form with full detent, limited detent and smooth bore (including with catcher mitt).
Various interface forms can satisfy the required axial or radial movement of blind mating in the couple usage of broad to broad connec tors.
Apply for the install situation with the requirement of high reliability modular intensive.

Features:

* Ability to withstand radial/axial misalignment
* Board-mount, field-replaceable, bullets, hermetic, and cable connector configurations
* Custom connectors available

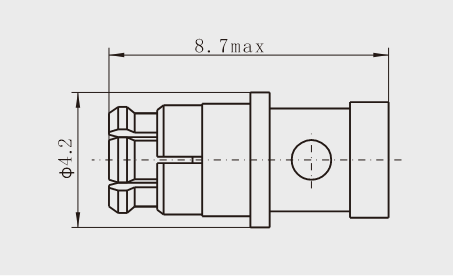

Outline Drawing of
SMP Female RF Adapter

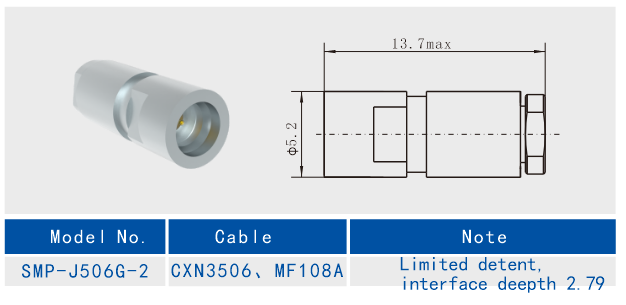

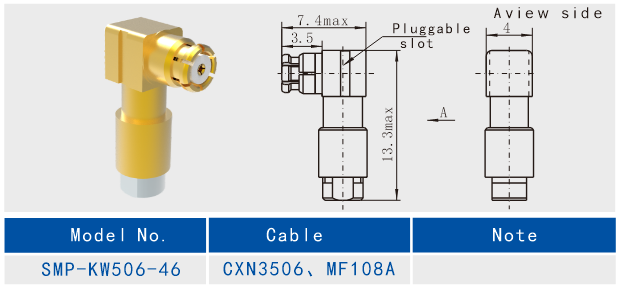

Related SMP female connectors
1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

Install Introduction:

NOTE:
We have over 1,000 types of SMP female male adapters for choice, if the product you are using is not found,
please contact us for full catologs. Custom dimensions is accepted.
