WR90 BJ100 To N Female Waveguide To Coax Adapter 8.2GHz~15GHz

The frequency of wave-guide to coax adapters processed by Elite Electronic (ELT) cover 5.4GHz-110GHz. With high reliability, small size and excellent performance, it is widely used in microwave measurement and millimeter wave equipment. The waveguide has standard rectangular and double-ridge waveguides, and non-standard waveguides can be customized according to user requirements. The coaxial end connection interface includes N, TNC, SMA, SMP, 3.5mm, K (2.92mm), 2.4mm, 1.85mm, 1.0mm and microstrip. Waveguide to coax adapters are divided into two types: end Launch and right angle launch from interface orientation. Among them, the RA launch type can also be used as a high-power structure.

Specification of N/BJ100-KF:

Product Name	WR90 Waveguide to SMA Coaxial Adapters
Model No.	N/BJ140-KF
Coaxial type	N
Waveguide Size	WR90
Body Style	Right Angle
Frequency Range	8.2-15GHz
SMA Impedance	50 Ohm
VSWR	1.30

Advantages:

-Our waveguide adapters are of high reliability, miniature size and excellent performance etc, which makes them extensively adopted in microwave measurement and millimeter wave devices etc.

Outline Drawing of Model No. N/BJ100-KF:

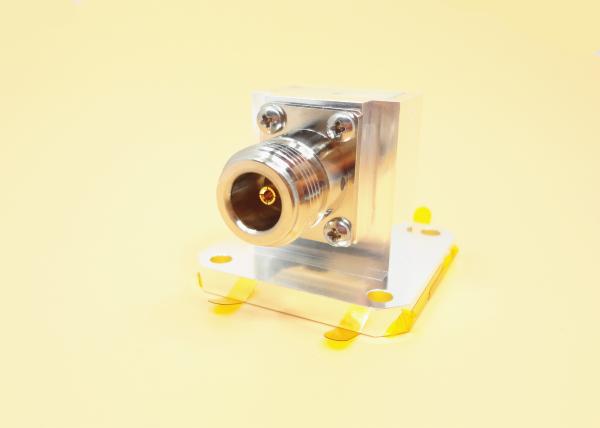

Pictures of WR90 BJ100 to N Female Waveguide to Coax Adapter N/BJ100-KF:

List of Waveguide to N Coaxial Adapters:

Model Number	Description	Note
N/BJ100-KF	WR90(BJ100) to N female end launch adapters	BJ100=WR90
N/BJ120-KF	WR75(BJ120) to N female end launch adapters	BJ120=WR75
N/BJ140-KF1	WR62(BJ140) to N female right angle adapters	BJ140=WR62

Cross-references of waveguide Standards

Chinese Standards	International Standards	Frequency Range (GHz)
BJ84	WR112	6.57~9.99
BJ100	WR90	8.20~12.5
BJ120	WR75	9.84~15.0
BJ140	WR62	11.9~18.0
BJ180	WR51	14.5~22.0
BJ220	WR42	17.6~26.7
BJ260	WR34	21.7~33.0
BJ320	WR28	26.3~40.0
BJ400	WR22	32.9~50.1
BJ500	WR18	39.2~59.6
BJ620	WR14	49.8~75.8
BJ740	WR12	60.5~91.9
BJ900	WR10	73.8~112

Waveguide to Coax Adapter-ELT 2024.pdf

NOTE:
We have over 1,000 types of Waveguide to Coaxial Adapters for choice, if the adapter you are using is not found, please contact us with your details. ODM dimension is welcomed.
