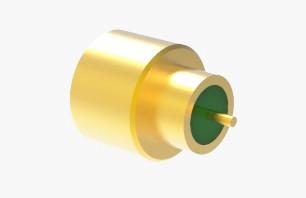

    SSMP/SMPM Coaxial Connector Hermetic Seal Male Pin Header Gold Wire Bonding Surface

    SSMP/SMPM Coaxial Connector Hermetic Seal Male Pin Header Gold Wire Bonding Surface


    SMPM is a miniature push in RF coaxial connector, which has the characteristics of small volume (compared with mini SMP), light weight and wide working bandwidth. It is applicable to the coupling use of board to board connectors in the case of modular dense installation. The plug has two types of interface: full detent and unthreaded hole, which are suitable for the occasion of intensive modular installation.

    Specification
    Electrical Characteristics
    Impedance50Ω
    Frequency RangeDC~50GHz
    Rated Voltage170VRMS*
    Dielectrics Voltage-resistance500VRMS*
    Insulation Resistance≥5000MΩ
    Center ResistanceOuter conductorNormally≤3.5mΩ, Hermetic≤5
    Center conductorNormally≤8mΩ , Hermetic≤30
    DC~18GHz18~26.5GHz26.5~40GHz40~50GHz
    VSWR≤1.25≤1.3≤1.4≤1.5
    Material & Mechanical Characteristics
    Center ConductorMaleTin Phosphor Bronze/ Kovar Gold Plated
    FemaleBeryllium bronze/gold plated
    Elastic ContactBeryllium bronze, Gold plated/Passivated
    Shell and other Metal Parts

    Beryllium Bronze/Kovar/Stainless Steel

    InsulatorsGlass sintering/PTFE/PEI
    Hermetic Product Leakage Rate≤1.01325x10-3.Pa.cm3/s

    Outline Drawing of SSMP/SMPM Coaxial Connector Hermetic Seal Male Pin Header Gold Wire Bonding Surface​(mm):

    Model NumberDescription
    SSMP(M)-JHD366-JHHermetic seal ssmp male rf connector with gold wire bonding surface, Interface depth 2.11

    Related Hermetically Sealed SSMP RF Connector(mm):

    1.

    Model NumberDescription
    SSMP(M)-JYD4Hermetic seal SSMP male crimp rf connector, Interface depth 2.11

    2.

    Model NumberDescription
    SSMP(M)-JHD12-JHHermetic seal ssmp male rf connector with gold wire bonding surface, Interface depth 2.11

    Features

    • excellent shock and vibration capability

    • 35% smaller than SMP connectors

    • axial and radial misalignment is allowed (blind configuration application)

    • performance up to 65GHz


    Application:


    *Network

    *Satellite communication

    *PC / LAN

    *Base station

    *Outdoor facilities

    *Automobile

    *Jumper insertion

    *Basic facilities

    *Radar, microwave

    *Telecommunications

    *Mobile communication

    *Instrumentation

    *Radio and television antenna system

    *RF test and measurement boards

    *High-speed digital component test


    NOTE:
    We have over 10,000 types of SMPM RF Connector, if the connector you are using is not found, please contact us with your detai
    ls.
