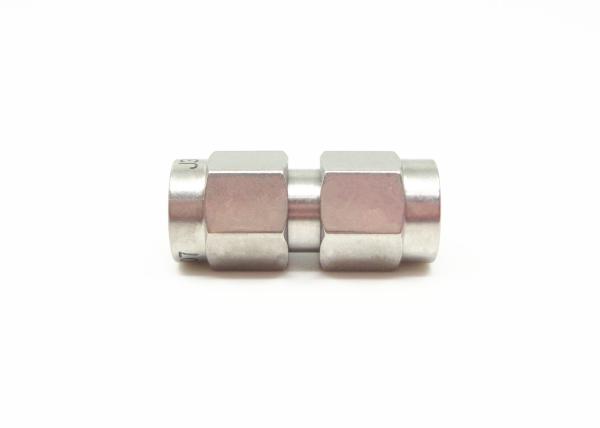

Stainless Steel 3.5mm to 2.92mm K Type Male to Male (MMW)Millimeter
Wave Adaptor
The 3.5 series Millimeter Wave Adaptor is a common used millimeter wave connector, the frequency is 33 GHZ
(up to 36 GHZ), use air interface, can mate and interchange with
SMA series, K series connectors, With advantages of great
bandwidth, high reliability,it is widely used in microwave
measurement and millimeter wave devices.
K-type(2.92mm,SMK) millimeter wave connectors, also called 2.92mm
connectors. It's one of the most popular meter wave connectors.The
broad frequency range is up to 40GHz. They can be mated with SMA
and 3.5mm connectors.
Specification:
| Impedance | 50 Ω |
| Frequency Range | DC - 33 GHz |
| Voltage Rating | 250 VRMS (Max. Sea Level) |
| Dielectric Withstanding Voltage | 750 VRMS (Max. Sea Level) |
Voltage Standing Wave Ratio
VSWR | ≤1.05+0.005f |
| Contact Resistance | Center Conductor ≤ 3.0 mΩ |
| Outer Conductor ≤ 2.5 mΩ |
| Insulation Resistance | ≥ 5000 MΩ |
| Inner Conductor | Male plug: Brass, Gold Plated |
| Female Jack: BeCu, Gold Plated |
| Resilient Contact | BeCu, Nickel Plated |
| Body / Shell / Housing | Brass, Gold Plated
Stainless Steel, Passivated |
| Insulator | PTFE |
| Gasket | Silicone Rubber |
| Temperature | -55℃ ~ +125℃ |
| Durability | 500 Cycles |
| Torque | 0.79 ~ 1.13 N.m |
| Insertion loss | <.04 sqrt(f(GHz)) dB |
| Temperature range | -65 ℃~+165 ℃ |
| Contact pin | Gold Plating |
