32.9GHz~50GHz WR22 BJ400 to 2.4mm Female Waveguide to Coax Adapter

The frequency of wave-guide to coax adapters processed by Elite Electronic (ELT) cover 5.4GHz-70GHz. With high reliability, small size and excellent performance, it is widely used in microwave measurement and millimeter wave equipment. The waveguide has standard rectangular and double-ridge waveguides, and non-standard waveguides can be customized according to user requirements. The coaxial end connection interface includes N, TNC, SMA, SMP, 3.5, K (2.92), 2.4, 1.85, 1.0 and microstrip. Waveguide to coax adapters are divided into two types: end Launch and right angle launch from interface orientation. Among them, the RA launch type can also be used as a high-power structure.

Specification of 2.4/BJ400-KF:

Product Name	WR22 Waveguide to 2.4mm Coaxial Adapters
Model No.	2.4/BJ400-KF
Coaxial type	2.4mm
Waveguide Size	WR22
Body Style	Right Angle
Frequency Range	32.9-50.1GHz
SMA Impedance	50 Ohm
VSWR	1.35

Advantages:

-Our waveguide adapters are of high reliability, miniature size and excellent performance etc, which makes them extensively adopted in microwave measurement and millimeter wave devices etc.

Outline Drawing of Model No. 2.4/BJ400-KF:

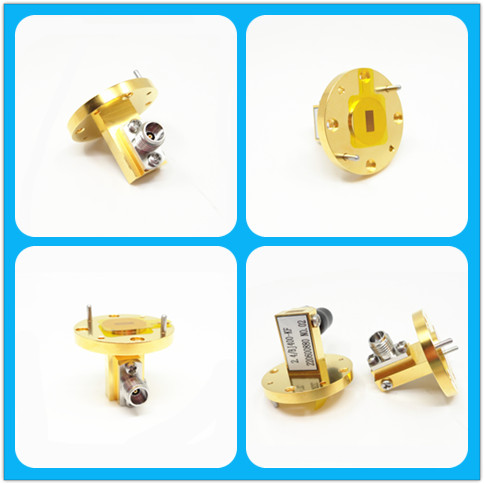

Pictures of WR22 BJ400 to 2.4mm Female Waveguide to Coax Adapter 2.4/BJ400-KF:

List of Waveguide to 2.4mm Coaxial Adapters:

Model Number	Description	Note
2.4/BJ260-KF	WR34(BJ260) to 2.4mm female right angle adapters
2.4/BJ260-JF	WR34(BJ260) to 2.4mm male right angle adapters	BJ260=WR34
2.4/BJ320-KF	WR28(BJ320) to 2.4mm female right angle adapters	BJ320=WR28
2.4/BJ320-JF	WR28(BJ320) to 2.4mm male right angle adapters	BJ400=WR22
2.4/BJ400-KF	WR22(BJ400) to 2.4mm female right angle adapters

Cross-references of waveguide Standards

Chinese Standards	International Standards	Frequency Range (GHz)
BJ84	WR112	6.57~9.99
BJ100	WR90	8.20~12.5
BJ120	WR75	9.84~15.0
BJ140	WR62	11.9~18.0
BJ180	WR51	14.5~22.0
BJ220	WR42	17.6~26.7
BJ260	WR34	21.7~33.0
BJ320	WR28	26.3~40.0
BJ400	WR22	32.9~50.1
BJ500	WR18	39.2~59.6
BJ620	WR14	49.8~75.8
BJ740	WR12	60.5~91.9
BJ900	WR10	73.8~112

Waveguide to Coax Adapter-ELT 2024.pdf

NOTE:
We have over 1,000 types of Waveguide to Coaxial Adapters for choice, if the adapter you are using is not found, please contact us with your details. ODM dimension is welcomed.
