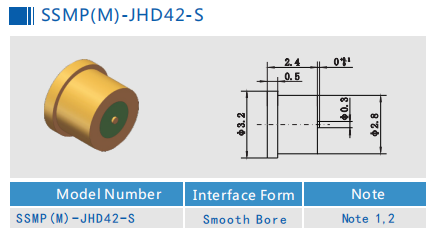

SSMP Hermetically Sealed Male Solder PCB Board Connector Smooth Bore φ0.3

Ask Lasest Price
Brand Name :	ELT (Elite)
Model Number :	SSMP(M)-JHD42-S
Certification :	ROHS ISO-9001-2015
Price :	Negotiable
Payment Terms :	Western Union, L/C, T/T
Supply Ability :	1,000,000pcs per month
Delivery Time :	Within 3 weeks

Add to Cart

Product Details
Company Profile

SSMP Hermetically Sealed Male Solder PCB Board Connector Smooth Bore φ0.3

SSMP Hermetically Sealed Male Solder PCB Board Smooth Bore φ0.3 Connector

SMPM is a miniature push in RF coaxial connector, which has the characteristics of small volume (compared with mini SMP), light weight and wide working bandwidth. It is applicable to the coupling use of board to board connectors in the case of modular dense installation. The plug has two types of interface: full detent and unthreaded hole.

Specification

Electrical Characteristics
Impedance	50Ω
Frequency Range	DC~50GHz
Rated Voltage	170VRMS*
Dielectrics Voltage-resistance	500VRMS*
Insulation Resistance	≥2000MΩ
Center Resistance	Outer conductor		≤5mΩ
	Center conductor		≤30mΩ
	DC~18GHz	18~26.5GHz		26.5~40GHz	40~50GHz
VSWR	≤1.25	≤1.3		≤1.4	≤1.5
Material & Mechanical Characteristics
Center Conductor	Male		Kovar, Gold plated
Elastic Contact	Beryllium bronze Gold plated
Shell and other Metal Parts	Kovar Gold plated
Insulators	Glass sintering
Hermetic Product Leakage Rate	≤1.01325×10-3Pa·cm3/s

Features

•Excellent shock & vibration ability

•35% smaller size than the SMP connectors

•Allows for axial and radial misalignment (blind mate applications)

•Performance up to 65 GHz

Model No.	L(mm)	Interface Type	Note
SMP(M)-JHD51-S	1.3	smooth bore, hermatically sealed
SMP(M)-JHD55	1.3	Full detent, hermatically sealed	Inteface deepth 1.4
SMP(M)-JHD62	0.8	Full detent, hermatically sealed	Engagement depth 1.45
SMP(M)-JHD85	1	Full detent, hermatically sealed	Engagement depth 1.7
SMP(M)-JHD86	3	Full detent, hermatically sealed	Engagement depth 1.4

Application:

* Network

* Satcom

* Computer/LANs

* Base Station

* Outdoor facilities

* Automotive

* Jump line join

* Basic facility

* Radar,microwave

* Telecommunications

* Mobile communication

* Instrumentation

* Radio, TV aerial system

Product Cataloge:

1. RF Connectors, Adapters (DC to 110GHz)
2. RF & Wave-guide Cable Assemblies
3. Wave-guide to Coax Adapters
4. Integrated(RF&DC) Connectors
5. Micro Rectangular Connector(J30J,Micro D-sub)
6. Glass-to-metal Hermetic Seals, Headers,Feedtru(RF & DC)
7. Microwave Rotary Joints
8. RF Loads, Terminations (TNC,SMA, SSMA, SMP, SSMP, N, K2.92mm)
9. ODM Products

NOTE:

We have over 10,000 types of SMPM Connector, if the connector you are using is not found, please contact us with your details.
