Straight Bulkhead Male SMP RF Connector Microstrip Pin Hermetic Connectors

SMP is a small push-in or snap-in RF coaxial connector, which has the characteristics of small size, light weight, good shock resistance, and wide frequency band operation. Its operating frequency is up to 30GHz (our SMP connector products can reach 40GHz), and the plug has three interface forms - full card position, limit card position and light hole (including belt brake). PCB mount, cable mount and serial adapters provide interconnect solutions for board-to-board, blind-mate, and rack and panel applications while maintaining packaging density. It is suitable for installations with high reliability modular intensive requirements.

Specification of SMP RF Connector

Features and Benefits of SMP RF Connector

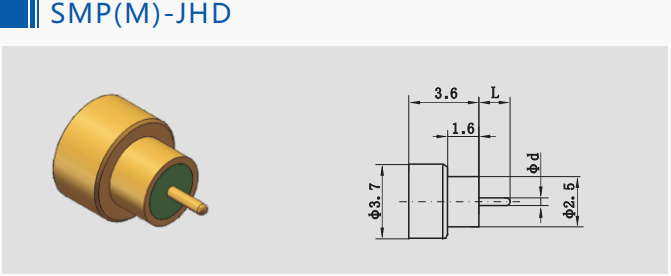

Detailed Drawing of SMP RF Connector(mm):

Other SMP RF Connector(mm):

Applications of SMP RF Connectors:
- Military
- Antennas
- Broadband
- Aerospace

- Broadband

- Telecommunications

- Instrumentation

- Instrumentation
- Phased array antennas

- Board-to-board interconnect
