50Ω Brass Gold Plated SMA RF Adapter Beryllium Bronze Contacts

Ask Lasest Price
Brand Name :	ELT (Elite)
Model Number :	SMA-JJ
Certification :	CE ROHS
Price :	Negotiable
Payment Terms :	T/T, Western Union, L/C
Supply Ability :	1,000,000 Pieces Per Month
Delivery Time :	Within 3 weeks

Add to Cart

Product Details
Company Profile

50Ω Brass Gold Plated SMA RF Adapter Beryllium Bronze Contacts

The SMA RF coaxial connector is a small, high frequency coaxial connector developed in accordance with MIL-C-39012. It has the advantages of small size, wide frequency band, superior mechanical and electrical performance, high reliability, etc. It is the most widely used RF coaxial connector. Widely used in microwave communication and microwave measurement equipment and other fields. This series of high performance connector developed by our company can reach frequency up to 20GHz.

High Performance SMA RF Connectors:

1. SMA RF connectors are available in quick connect , push-on or standard interface , straight, 90 degrees versions,as well as bulkhead or 4 holes panel configurations.
2. SMA RF connector is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required.
3. SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc.
4. SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18GHz (Our SMA RF connectors can be 20GHz).

Our Advantange:

20 years experience on RF & Microwave Components
Qualified components supplier of China Spacecraft
Rich cooperation experience with national high tech projects
Military and commercial grade components for choice
Strict quality (QA Report),ISO9001,ROHS,CE,UL
Factory area 35,000 sq.m with almost 1,000 experience staff
500+ national patents with 15 production lines
Annual output value above US$300 million
50+ series products with 100,000 types
Short delivery and competitive price
Custom-made(ODM) orders are welcomed

Applicable Standard:

MIL-C-39012
IEC 60169-15

Product Display:

Size:S8x15.4

Electrical Characteristics:

Impedance	50Ω
Frequency Range	DC~18GHz
Rated Voltage	335VRMS*
Dielectrics Voltage-resistance	1000VRMS*
Insulation Resistance	≥5000MΩ
Center Resistance	Center Conductor	≤3.0mΩ
	Outer Conductor	≤2.0mΩ
VSWR	≤1.3

Material & Mechanical Characteristics:

Center Conductor	Male	Brass Gold plated
	Female	Sn-P Bronze Gold plated
Elastic Contact		Beryllium bronze Nickel plated
Shell and other Metal Parts		Brass Nickel plated
		Stainless Passivation
Crimping Sleeve		Brass Nickel plated
Tightening torque of connection		0.79－1.13N .m
Durability		500 cycles
Sealing Ring		Silicone Rubber
Insulators		PTFE

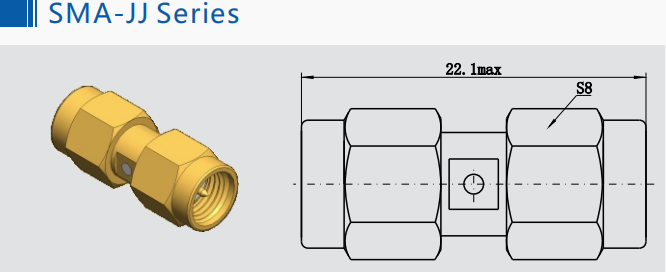

More Detail of

50Ω Brass Gold Plated SMA RF Adapter Beryllium Bronze Contacts:

(Unit:mm)

Model Number	Description
SMA-JJ	Gold plated SMA male to SMA male rf connector
SMA-JJG	Stainless steel gold plated SMA male to SMA male rf connector

There are other SMA RF Adapters(mm):

Best Selling Coaxial Connector Gold Plated SMA RF Connectors For Microwave Communication

Model Number	Description
SMA-JWJ	SMA male to SMA male right angle rf adapter

Best Selling Coaxial Connector Gold Plated SMA RF Connectors For Microwave Communication

Model Number	L	Decription
SMA-JWK	15.6max	SMA male to SMA female right angle rf adapter
SMA-KWK1	16.5max	SMA male to SMA female right angle rf adapter
SMA-JWKG	15.6max	Stainless steel SMA male to SMA female right angle rf adapter
SMA-JWK1-Y1	16.5max	SMA male to SMA female right angle rf adapter

Applications:

Microwave Systems Telecommunications
5G Solutions
Measurement Systems
Mobile Telephone WiFi Antennas Systems

NOTE:
We have over 10,000 types of SMA Connector/Adapter, if the connector you are using is not found, please contact us with your details.
