Micro Rectangle MDM D Sub 9 Pins Connector Hermetic Sockets

J30JM Hermiticlly D-sub Socket

J30JM micro rectangular female connectors are hermetic sockets with dielectric in glass and contact spacing 1.27mm. For end termination styles, they can be applicable to wires with sectional area Φ0.1-0.15mm2, or soldered onto PCB directly. These connectors are designed exclusively for the conditions where hermetic sealing is requested. They have characteristics of small size, light weight, reliable connection, excellent electromagnetic shielding effectiveness, vibration and shock resistance etc.

Contact Arrangements
(Face View of Pin insert)

Specification:

Current Rating	3A
Voltage Rating	300V
Insulation Resistance	≥ 5000 MΩ
Durability	500 cycles
Dielectric Withstand Voltage	800
Environmental Temperature	-55℃ ~ + 125℃
Relative Humidity	up to 95% at +40℃
Vibration	10Hz~ 2000Hz 196m/S²
Total acceleration RMS	23.1G
Impact	735m/S²

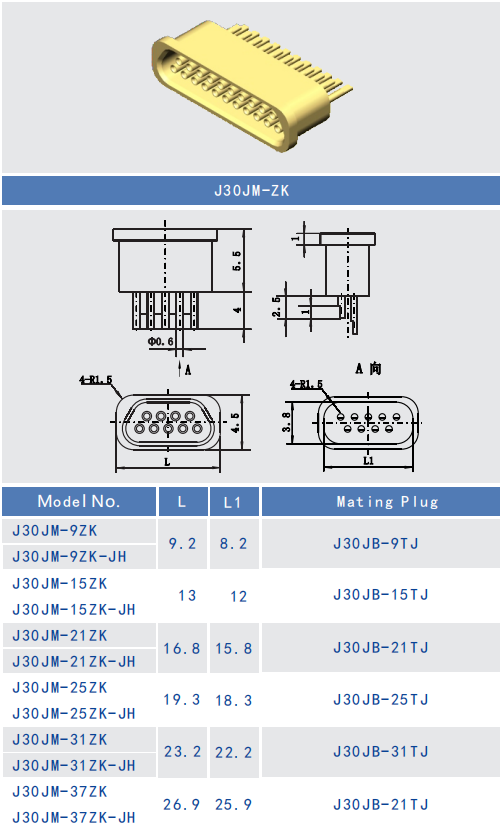

Outer Dimension Drawing

Features:

* Standard:equivalent MIL-DTL-83513

* The series of products including 9,15,21,25,31,37cores

* The termination style is right angle contact for PCB, and the reseau is 1.27×2.54(row ×line)

* Twist pin

* The section area of suitable cable is 0.1~0.15 mm2

* The cable of section area for 0.07 mm2

* 1, 2, 3 ,4-raw options

* High density connection

* There have straight, right-angle models choice

* Low contact resistance, high current capability, high dielectric strength.

* Custom designed connectors and cable assemblies.

* Straight, right-angle models choice
* Space and weight saving.

Types:

- J30J series
- J30JM( Hermetic) series
- J30(Plastic) series
- J50J series
- J55A series
- J55AM( Hermetic) series
- J56J series

Applications:

- Avionics, radars
- Missiles and guidance systems
- On-board equipment
- Telecommunication systems

- Research centres

- Military

- GPS

- UAV

- Communications

- Satcom

- Navigation systems
- Research centres
- Medical applications
- Surface Mount (SMT) Board to Cable
