Hermetic Glass Insulator Feedthrough Seal SMA Female Connector Four Hole Mount

SMA series is a kinds of mini, high-frequency RF coaxial connector, it's developed and produced according to MIL-C-39012. With characteristics of small volume,good bandwidth,superior electrical characteristics.

SMA is the most widely used rf coaxial connectors in different fields of microwave communication and microwave measuring device.The high performance connector developed by our company can reach to 20GHz.

Electronic and Material Characterials:

Electronic and Material Characterials
Impedance		50Ohm
Frequency Range		DC~18GHz
Rated Voltage		335 VRMS (Maximum sea-level)
Dielectrics Voltage-resistance		1000VRMS (Maximum sea-level)
VSWR	Straight	≤1.3
	Right Angle	≤1.35
Insulation Resistance		≥5000MΩ
Center conductor	Male	Brass, Gold-plated
	Female	Beryllium bronze, Gold plated
Shell and other metal parts		Brass , Stainless steel, Gold-plated
Contact Resistance	Inner conductor	≤3.0MΩ
	Outer conductor	≤2.0MΩ
Elastomer		Beryllium bronze ,Nickle plated
Insulator		PTFE
Seal ring		Silicon rubber
Mating torque		0.79-1.13 N.m
Durablity		500(Cysles)

Outline Drawing:

Related SMA RF Connector(mm):

Gold Plated SMA Female 2-hole Flange RF Coaxial Connector for Automotion Antenna

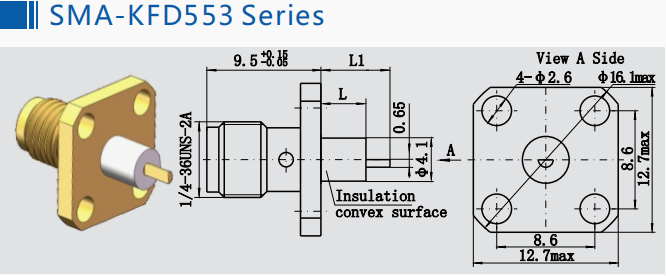

Model Number	L	L1	Description
SMA-KFD553	1.5	4	SMA Female 4-hole flange mount rf connecor
SMA-KFD666	5.4	6.9
SMA-KFD850	6	8.5

Gold Plated SMA Female 2-hole Flange RF Coaxial Connector for Automotion Antenna

Model Number	L	L1	D	D1	D2	Description
SMA-KFD1308	11.7	13.7	2.6	1.3	4.1	SMA female 4-hole flange rf connector
SMA-KFD1318	7	17	2.6	1.3	4.1
SMA-KFD1367	5	11	2.6	1.3	4.1
SMA-KFD1393	8.4	9.4	2.6	1.3	4.1
SMA(S)-KFD1414	23.9	27	2.6	1.3	4.1	Waterproof SMA female 4-hole flange mount rf connector

Gold Plated SMA Female 2-hole Flange RF Coaxial Connector for Automotion Antenna

Model Number	L	L1	D	D1	Description
SMA-KFD90	3.2	2.5	0.65 flat	6	SMA female 4-hole flange rf connector
SMA-KFD126	4	2.5	0.65 flat	6
SMA-KFD129	4	2	0.65 flat	6
SMA-KFD870	3	5	0.65 flat	6

Application:
*Aerospace
*Broadband
*Instrumentation
*Phased array antennas
*Telecommunications

*Board-to-board interconnect

NOTE:

We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
