Radius Right Angle Pin SMA 2 Holes Flange Connector 50Ohm

Ask Lasest Price
Brand Name :	ELT (Elite)
Model Number :	SMA-KFDT3
Certification :	ROHS, ISO-9001-2015
Price :	Negotiable
Payment Terms :	T/T, Western Union, L/C
Supply Ability :	1,000,00 Pieces Per Month
Delivery Time :	Within 3-4 weeks

Add to Cart

Product Details
Company Profile

Radius Right Angle Pin SMA 2 Holes Flange Connector 50Ohm

50Ω 2 Holes Flange Mount RF Connector Female Gold Plated Brass

The SMA RF coaxial connector adapter is a small, high frequency coaxial connector developed in accordance with MIL-C-39012. It has the advantages of small size, wide frequency band, superior mechanical and electrical performance, high reliability, etc. It is the most widely used RF coaxial connector. Widely used in microwave communication and microwave measurement equipment and other fields. This series of high performance connector developed by our company can reach frequency up to 20GHz.

Specifiacation:

Electronic and Material Characterials
Impedance		50Ohm
Frequency Range		DC~18GHz
Rated Voltage		335 VRMS (Maximum sea-level)
Dielectrics Voltage-resistance		1000VRMS (Maximum sea-level)
VSWR	Straight	≤1.3
	Right Angle	≤1.35
Insulation Resistance		≥5000MΩ
Center conductor	Male	Brass, Gold-plated
	Female	Beryllium bronze, Gold plated
Shell and other metal parts		Brass , Stainless steel, Gold-plated
Contact Resistance	Inner conductor	≤3.0MΩ
	Outer conductor	≤2.0MΩ
Elastomer		Beryllium bronze ,Nickle plated
Insulator		PTFE
Seal ring		Silicon rubber
Mating torque		0.79-1.13 N.m
Durablity		500(Cysles)

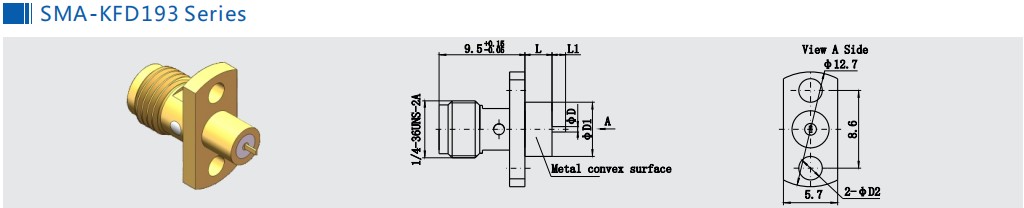

Detailed:(mm)

Similar Products:

1.Gold Plated Brass 2 Holes Flange Mount Straight RF Coaxial Connector Jack

Model No.	L	L1	D	D1	D2	Note
SMA-KFD193	4	1.5	0.5*0.2	4	2.2	Terminal flat side is parralled to the long side of the flange
SMA-KFD524	5	2.5	0.5*0.2	4	2.6
SMA-KFD773	4	4	φ1.3*0.2	5.2	2.2
SMA-KFD1207	3.5	5	0.5*0.2	4.1	2.6

2.Hermetically sealed Female SMA RF Conectors

Model No.	Note
SMA(M)-KFD	Hermetic

3.SMA Female 4 Holes Flange Mount Right Angle RF Coaxial Connectors

Model No.	D	Note
SMA-KWFD2	0.2*0.5
SMA-KWFD109	0.5*0.2

Application:

* Broadband
* Instrumentation
* Phased array antennas
* Telecommunications

* Board-to-board interconnect

* Base Station

* Mobile communication

* Outdoor facilities

* Radar,microwave

Product Cataloge:

RF Adapter

SMA RF Connector

SSMP RF Connector

TNC RF Connector

N Type RF Connector

MCX/MMCX RF Connector

Millimeter Wave Connectors(2.4mm, 2.92mm)

RF Cable Assemblies

Waveguide to Coaxial Adapter

Glass-to-metal Hermetic Seals

J30J Series Connector

Microwave Rotary Joints

NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
