SSMA Male Series Nickel Plated RF Connector for
2#Semi-rigid/flexible Cable
The SSMA Series RF coaxial connector is a scaled-down version of
the SMA connector. Its distinguishing features include its compact
size, broad frequency range, and high dependability. It has been
extensively adopted in various sectors such as aviation, aerospace,
and microwave communication.
Specification:
Note:The specific data of the model are based on the data in the
product specification sheet.
| Electronic and Material Characterials |
| Impedance | 50Ω |
| Frequency Range | DC~30GHz |
| Rated Voltage | 250 VRMS (Maximum sea-level) |
| Dielectrics Voltage-resistance | 750 VRMS (Maximum sea-level) |
| VSWR | ≤1.3 |
| Insulation Resistance | ≥2000MΩ |
| Center conductor | Male | Brass gold plated |
| Female | Beryllium copper gold plated |
| Shell and other metal parts | Brass gold plated |
| Stainless steel passivated |
| Cable sheath | Brass nickle plated |
| Insulator | PTFE |
| Seal ring | Silicon rubber |
| Mating torque | 0.5 -0.7N.m |
Key Features:
1. Miniaturized Size: The SSMA connector is designed to be smaller
than its SMA (SubMiniature version A) counterpart, making it ideal
for use in space-constrained environments.
2. Wide Frequency Range: The SSMA connector is capable of handling
a broad frequency spectrum, which is essential for diverse
communication systems and applications.
3. High Reliability: Engineered for stability and robustness, SSMA
connectors are trusted in demanding settings such as aviation and
aerospace industries.
4. Environmental Resistance: These connectors are often designed to
withstand extreme temperatures, vibrations, and other environmental
factors to ensure operation in harsh conditions.
Application:
1. Navigation Systems: For instance, Global Positioning System
(GPS) devices may utilize SSMA connectors to maintain the
connection between antennas and receivers.
2. Radar Systems: SSMA connectors can be used in radar setups to
connect transmit and receive modules for high-frequency signals.
3. Medical Devices: Some high-frequency medical equipment, such as
electrosurgical units and RF therapy devices, may use SSMA
connectors for signal connectivity.
Product Cataloge:
| RF Adapter |
| SMA RF Connector |
| SSMP RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| MCX/MMCX RF Connector |
| Millimeter Wave Connectors(2.4mm, 2.92mm) |
| RF Cable Assemblies |
| Waveguide To Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |

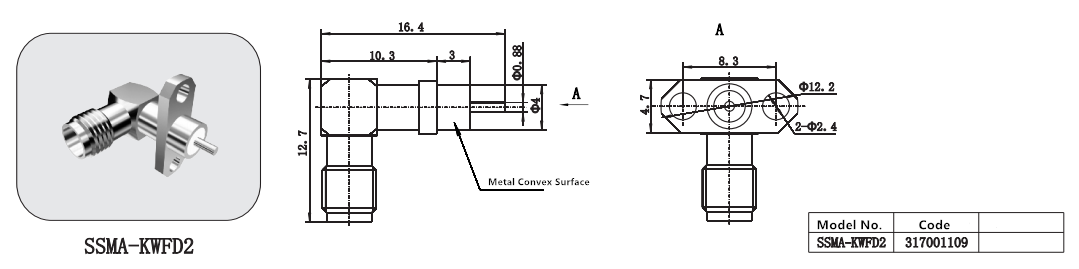

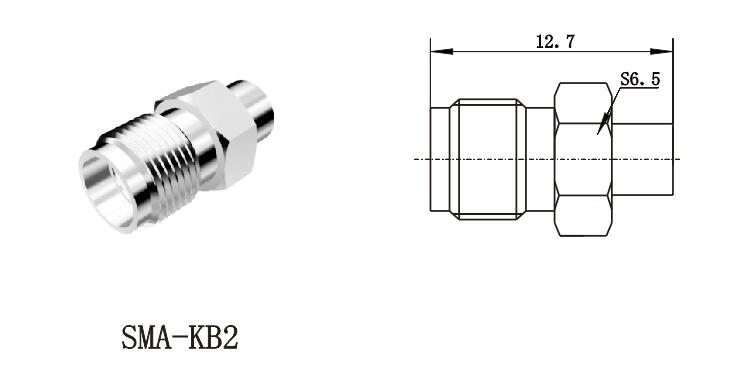

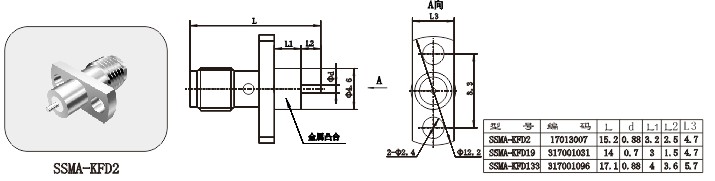

Interface Dimentions:
