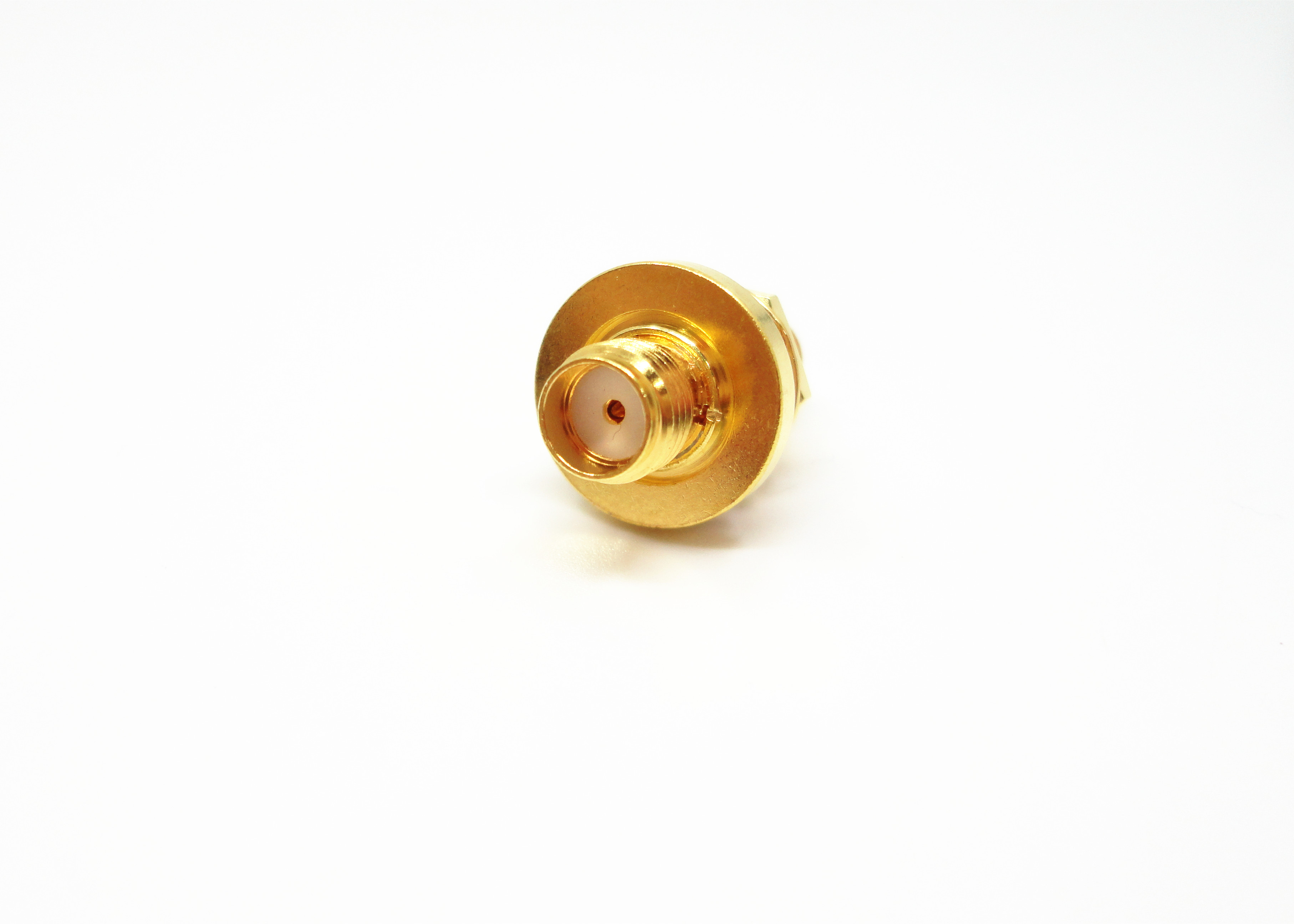

    SMA Hermetic RF Cable Connector Female Bulkhead to Female Socket Coax Connector

    Ask Lasest Price
    Brand Name : ELT (Elite)
    Model Number : SMA(M)-KYK3
    Certification : CE ROHS
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 35000PCS/year
    Delivery Time : Within 3 weeks
    • Product Details
    • Company Profile

    SMA Hermetic RF Cable Connector Female Bulkhead to Female Socket Coax Connector

    SMA Hermetic RF Cable Connector Female to Female Coax Connector

    SMA series is a kind of mini, high-frequency RF coaxial connector, it's developed and produced according to MIL-C-39012. With characteristics of small volume,good bandwidth,superior electrical characteristics. SMA is the most widely used RFcoaxial connectors in different fields of microwave communication and microwave measuring device.The high performance connector developed by our company can reach to 20GHz.


    Electrical Specification :

    Impedance50Ω
    Frequency RangeDC~18GHz
    Rated Voltage335VRMS*
    Dielectrics Voltage-resistance1000VRMS*
    Insulation Resistance≥5000MΩ
    Center ResistanceCenter Conductor≤3.0mΩ
    Outer Conductor≤2.0mΩ
    VSWR≤1.3

    Material & Mechanical Characteristics:

    Center ConductorMaleBrass Gold plated
    FemaleSn-P Bronze Gold plated
    Elastic ContactBeryllium bronze Nickel plated
    Shell and other Metal PartsBrass Nickel plated
    Stainless Passivation
    Crimping SleeveBrass Nickel plated
    Tightening torque of connection0.79-1.13N .m
    Durability500 cycles
    Sealing RingSilicone Rubber
    InsulatorsPTFE

    Environmental Specification:

    Operating Temperature-40 to +85Deg C

    Product Detail of SMA Coax Connector :



    Features of SMA RF Connector:

    1, SMA RF connectors are available in quick connect , push-on or standard interface , straight, 90 degrees versions,as well as bulkhead ,or 4 holes panel configurations
    2, SMA RF connector is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required
    3, SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc
    4, SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18 GHz (Our SMA RF connectors can be 20GHz)

    Application:
    * Broadband
    * Instrumentation
    * Antennas
    * Telecom
    * Phased array antennas
    * Telecommunications

    * Board-to-board interconnect

    Product Cataloge:


    RF Adapter
    SMA/SSMA RF Connector
    SMP/SSMP RF Connector
    TNC RF Connector
    N Type RF Connector
    MCX/MMCX RF Connector
    BNC RF ConnectorMillimeter Wave Connectors(2.4mm, 2.92mm)
    RF Cable Assemblies
    Waveguide to Coaxial Adapter
    Glass-to-metal Hermetic Seals
    J30J Series Connector
    Microwave Rotary Joints


    NOTE:
    We have over 4000 types of interconnect products, if the connector you are using is not found, please contact us with your details.
