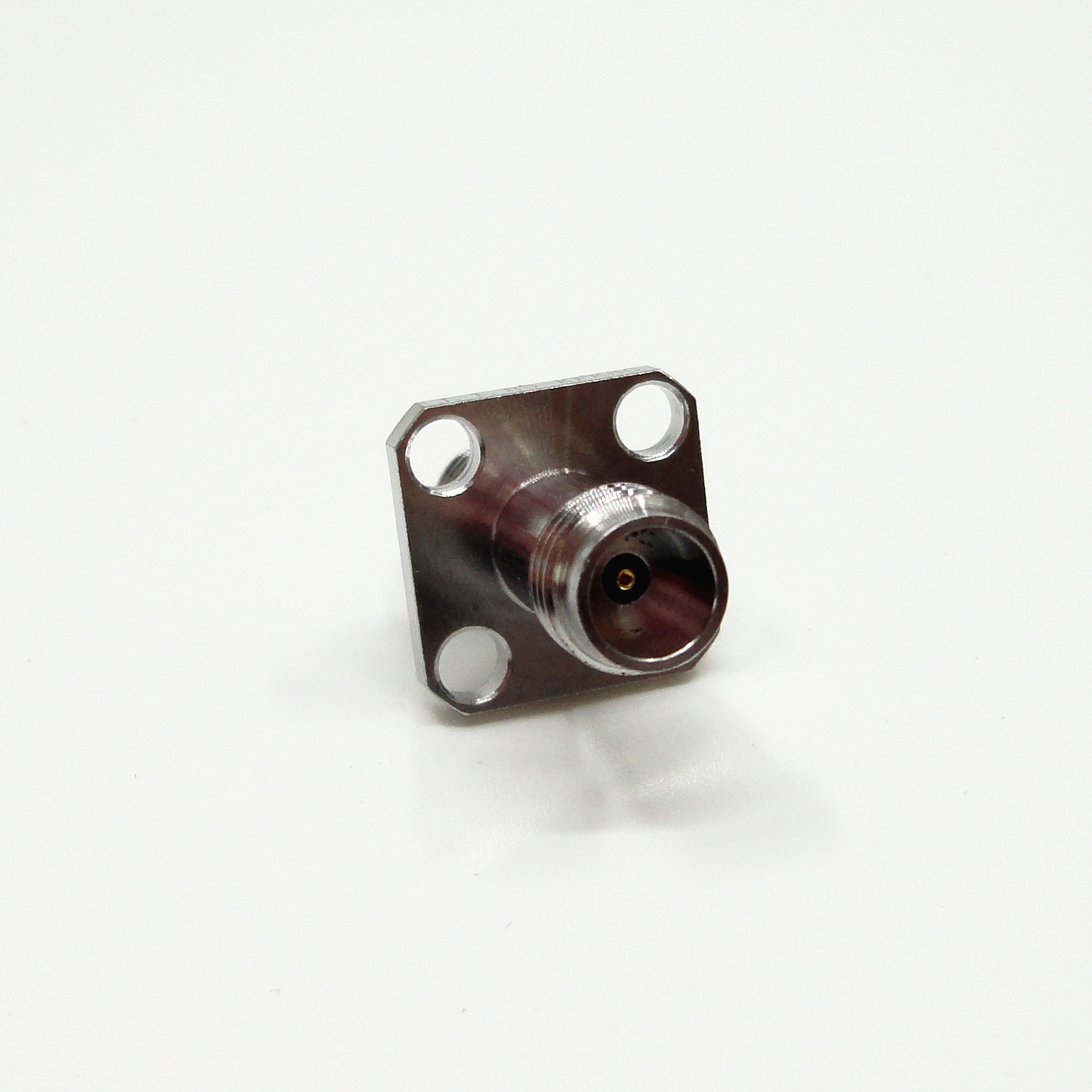

MMW 1.85mm Female to Female 4-hole Flange Straight Stainless Steel RF Adapter

Ask Lasest Price
Brand Name :	ELT
Model Number :	1.85-KFK5G
Certification :	ROHS ISO-9001-2015
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	35000pcs/year
Delivery Time :	Within 3 weeks

Add to Cart

Product Details
Company Profile

MMW 1.85mm Female to Female 4-hole Flange Straight Stainless Steel RF Adapter

MMW Connectors Female Straight 1.85 mm RF Connector for Radar

1.85mm connector is a high performance millimeter wave connector.Its usage frequency can up to 67 Ghz. Using air interface and threaded connection, it can be interchanged with 2.4mm connector. It has the advantages of small size, light weight, high frequency of use and reliable connection. It is commonly used in high frequency microwave measurement and millimeter wave devices.

Specification:

Electronic and Material Characterials
Impedance		50Ohm
Frequency Range		DC~67GHz
Rated Voltage		170 VRMS (Maximum sea-level)
Dielectrics Voltage-resistance		500 VRMS (Maximum sea-level)
VSWR		≤1.3
Insulation Resistance		≥5000MΩ
Center conductor	Male	Beryllium bronze gold plated
	Female	Beryllium bronze gold plated
Shell and other metal parts		Brass /stainless Stain gold plated /passivated
Insulator		PEI/PLF
Seal ring		Silicon rubber
Mating torque		0.79 -1.13 N.m

More Pictures of MMW Connectors Female Straight 1.85 mm RF Adapter for Radar:

Application:

Network	Satcom
Computer/LANs	Computer/LANs
Mobile communication	Instrumentation
Base Station	Mobile communication
Outdoor facilities	Radar,microwave
Telecommunications	Instrumentation
Automotive	Jump line join
Basic facility	Radio, TV aerial system
