Flange Bulkhead Mount SMA Female to Female Adapter RF Coaxial Connector

    Buy cheap Flange Bulkhead Mount SMA Female to Female Adapter RF Coaxial Connector from wholesalers

    Buy cheap Flange Bulkhead Mount SMA Female to Female Adapter RF Coaxial Connector from wholesalers
    • Buy cheap Flange Bulkhead Mount SMA Female to Female Adapter RF Coaxial Connector from wholesalers
    • Buy cheap Flange Bulkhead Mount SMA Female to Female Adapter RF Coaxial Connector from wholesalers

    Flange Bulkhead Mount SMA Female to Female Adapter RF Coaxial Connector

    Ask Lasest Price
    Brand Name : ELT (Elite)
    Model Number : SMA-KYFK
    Certification : ROHS ISO-9001-2015
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 1,000,000pcs per week
    Delivery Time : within 3 weeks
    • Product Details
    • Company Profile

    Flange Bulkhead Mount SMA Female to Female Adapter RF Coaxial Connector

    SMA Female to Female Flange Bulkhead Mount RF Coaxial Connector Adaptor


    The SMA RF coaxial connector is a small, high frequency coaxial connector developed in accordance with MIL-C-39012. It has the advantages of small size, wide frequency band, superior mechanical and electrical performance, high reliability, etc. It is the most widely used RF coaxial connector. Widely used in microwave communication and microwave measurement equipment and other fields. This series of high performance connector developed by our company can reach frequency up to 20GHz.


    As manufacturer, we can customize SMA connectors and adapters as per your different requirement. Orientations in straight and right angle, with 2-hole or 4-hole flange or threaded bulkhead, hermetic and waterproof types are all available upon request.

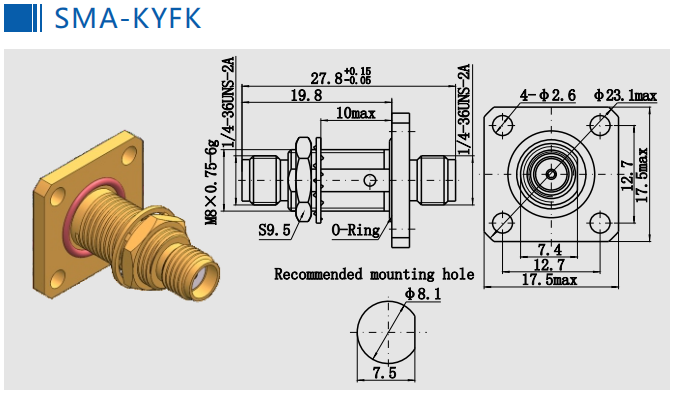

    Outline Drawing and Picture(mm)


    Electrical Characteristics of SMA RF Adapter

    Impedance50Ω
    Frequency RangeDC - 18GHz
    Voltage Rating335VRMS (Max. Sea Level)
    Dielectric Withstand Voltage1000 VRMS (Max. Sea Level)

    VSWR

    (Voltage Standing Wave Ratio)

    ≤ 1.3
    Contact Resistance

    Center Conductor ≤ 3.0 mΩ

    Outer Conductor ≤ 2.0 mΩ

    Insulation Resistance≥ 5000 MΩ

    Other SMA Male Female to SMA In-series Male Female RF Adapter

    Part Number
    Description
    SMA-KJK
    SMA female to male to female adapter
    SMA-JJ
    SMA male to male adapter
    SMA-JWK1C
    RA SMA male to female adapter
    SMA-JWJ
    SMA male to male adapter

    SMA-KK2

    SMA male to male adapter
    SMA-KYFK
    SMA female to female bulkhead adapter

    1.


    2.



    3.


    4.


    5.


    6.

    Application:

    NetworkSatcom
    Computer/LANsComputer/LANs
    Mobile communicationInstrumentation
    Base StationMobile communication
    Outdoor facilitiesRadar,microwave
    TelecommunicationsInstrumentation
    AutomotiveJump line join
    Basic facilityRadio, TV aerial system

    Workshop & Exibition

    NOTE:
    We have over 10,000 types of RF Adapters, if the connector you are using is not found, please contact us with your detai
    ls.
