50Ω Impedance Female To Female SSMP RF Adapter Gold Plated

Ask Lasest Price
Brand Name :	ELT (Elite)
Model Number :	SSMP-KK54
Certification :	CE ROHS
Price :	Negotiable
Payment Terms :	Western Union, L/C, T/T
Supply Ability :	1,000,000pcs per month
Delivery Time :	within 3 weeks

Add to Cart

Product Details
Company Profile

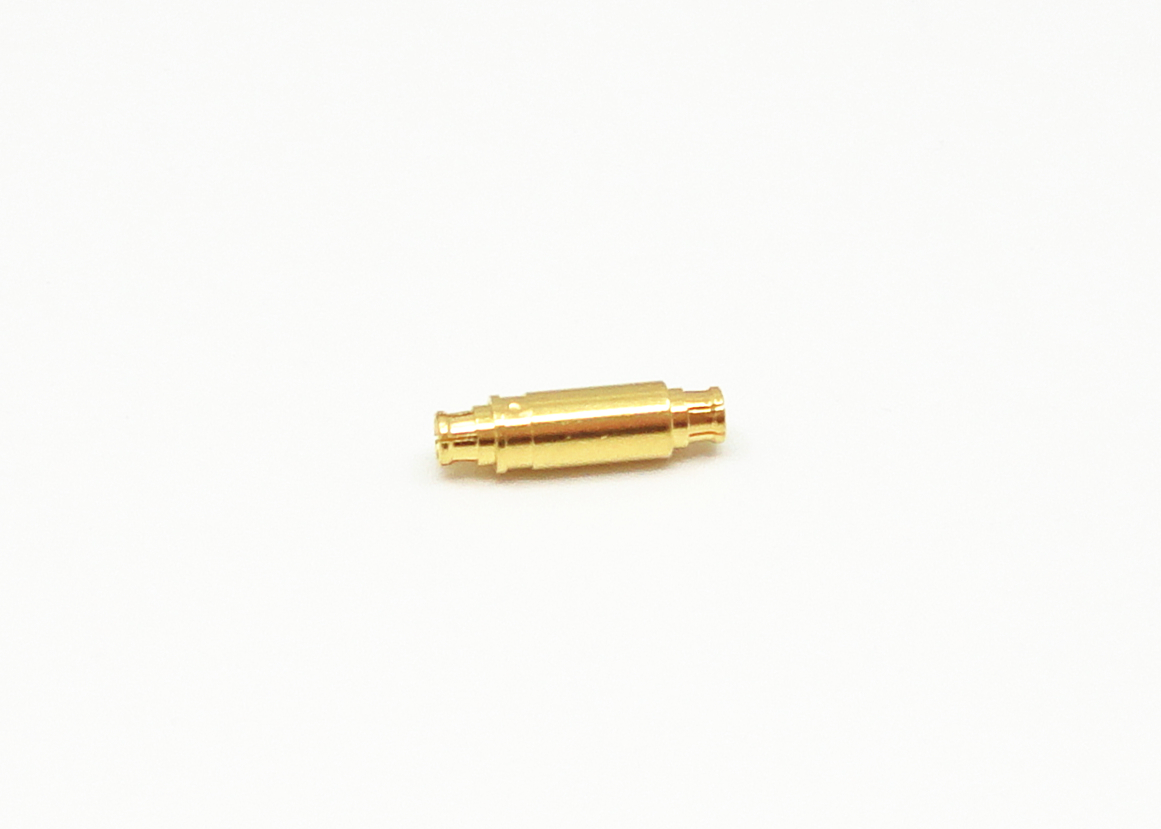

50Ω Impedance Female To Female SSMP RF Adapter Gold Plated

50Ω Impedance Gold Plated Female To Female SSMP RF Adapter

Introduction

SMPM is a miniature push-on RF coaxial connector, which have the characters of small volume(compared with Mini SMP), light weight, wide working broadband,etc. Apply for the couple usage of board to board connectors for the situation of modular intensive mounting,and the plug has two interface form with full detent and unthreaded hole. The SMPM for the install situation with the requirement of high reliability modular intensive.Typical applications include third generation telecommunication systems

Specification:

Electrical Characteristics
Impedance	50Ω
Frequency Range	DC~50GHz
Rated Voltage	170VRMS*
Dielectrics Voltage-resistance	500VRMS*
Insulation Resistance	≥2000MΩ
Center Resistance	Outer conductor		Normal≤3.5mΩ, Sealing≤5mΩ
	Center conductor		Normal≤8mΩ, Sealing≤30mΩ
	DC~18GHz	18~26.5GHz		26.5~40GHz	40~50GHz
VSWR	≤1.25	≤1.3		≤1.4	≤1.5

Material & Mechanical Characteristics:

Center Conductor:

Male: Sn-P Bronze/Kovar, Gold plated

Female: Beryllium bronze, Gold plated

Elastic Contact:Beryllium bronze Gold plated

Body and other Metal Parts: Brass/Kovar Gold plated

Product Drawing:

Features:

- Higher frequency range to 50GHz

- SMPM (SSMP) is a sub-miniature, push-on style micro-interfaces connectors can be widely used in telecom.

- SMPM series includes PC-mount, straight and right-angled, .047 cabled connectors, and sealable flange-mounts.

- All male connectors are offered as full-detent or smooth bore designs for your preference of separation forces.

Gold offers the following main advantages:

-- Excellent wettability/solderability

-- Excellent protection against corrosion

-- Low contact resistance

-- Good wear resistance

Application:

*Board-to-board interconnect

*Aerospace

*Broadband

*Instrumentation

*Phased array antennas

*Telecommunications

Certificate:

Factory& Production Line:

NOTE:

We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
