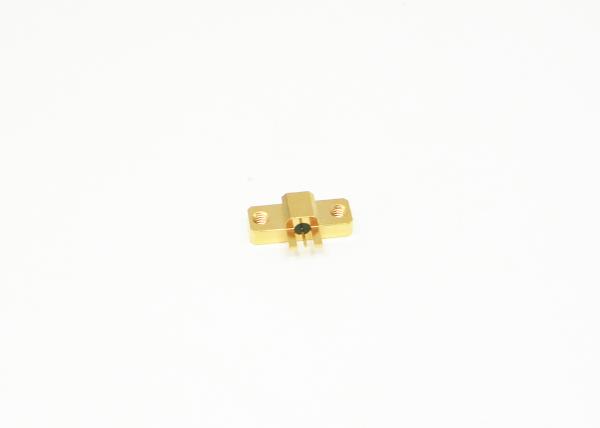

Hermetically Sealed Male SMP Coaxial Connector Solder Mount

Hermetically Sealed Solder Mount SMP Male Coaxial Connectors

SMP is a subminiature push-on(snap coupling) RF coaxial connector,which has the characters of small volume, light weight, excellent seismic performance,and widely working broadband,etc. Operating frequency up to 30GHz (our product of high performance SMP connector can reach 40GHz),and the plug has three interface form-full detent, limited detent and smooth bore(including with braking).PCB mount, cable mount and in-series adaptors provide an interconnect solution for board-to-board, blind mate and rack-and-panel applications while maintaining package density.Apply for the install situation with the requirement of high reliability modular intensive.

Features:

- DC to 40 GHz
- Sub-miniature

- Gold plated
- Compact size
- Push-on or snap coupling
- PCB & cable mount connectors

- Full detent, Limited detent and Smooth bore

- Male& Female, Straight & Right Angle choice
- Normal type and hermetic, Flange mount & Thread-In Mount choice

- Cable mount versions for both flexible and semi-rigid cable Materials

Specification

Electrical Characteristics
Impedance	50Ω
Frequency Range	DC~40GHz
Rated Voltage	170VRMS*
Dielectrics Voltage-resistance	500VRMS*
Insulation Resistance	≥2000MΩ
Center Resistance	Outer conductor		Normal≤3.5mΩ, Sealing≤5mΩ
	Center conductor		Normal≤8mΩ, Sealing≤30mΩ
	DC~18GHz	18~26.5GHz		26.5~40GHz	40~50GHz
VSWR	≤1.25	≤1.3		≤1.4	≤1.5
Material & Mechanical Characteristics
Center Conductor	Male		Sn-P Bronze/Kovar, Gold plated
	Female		Beryllium bronze, Gold plated
Elastic Contact	Beryllium bronze Gold plated
Shell and other Metal Parts	Brass/Kovar Gold plated Stainless steel Passivation
Insulators	Glass sintering/PTFE/PEI
Hermetic Product Leakage Rate	≤1.01325×10-3Pa·cm3/s

Application:

* Satcom

* Network

* Computer/LANs

* Base Station

* Outdoor facilities

* Instrumentation

* Automotive

* Jump line join

* Basic facility

* Radar,microwave

* Telecommunications

* Mobile communication

* Radio, TV aerial system

Product Cataloge:

RF Adapter

Waveguide To Coaxial Adapter

TNC RF Connector

N Type RF Connector

Microwave Rotary Joints

RF Cable Assemblies

SMA/SSMA RF Connector

SMP/SSMP RF Connector

MCX/MMCX RF Connector

J30J Series Connector

Glass-to-metal Hermetic Seals

BNC RF ConnectorMillimeter Wave Connectors(2.4mm, 2.92mm)

Packaging Details:

* Standard Export Carton
* According to customers' requirements

NOTE:
We have over 10,000 types of SMPM Connector, if the connector you are using is not found, please contact us with your details.
