    2 Holes 2.92mm K Connector Flange Panel Mount

    Ask Lasest Price
    Brand Name : ELT
    Model Number : K-KFDFUZZ
    Certification : CE,ROHS
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 35000pcs/year
    Delivery Time : Within 3 weeks
    • Product Details
    • Company Profile

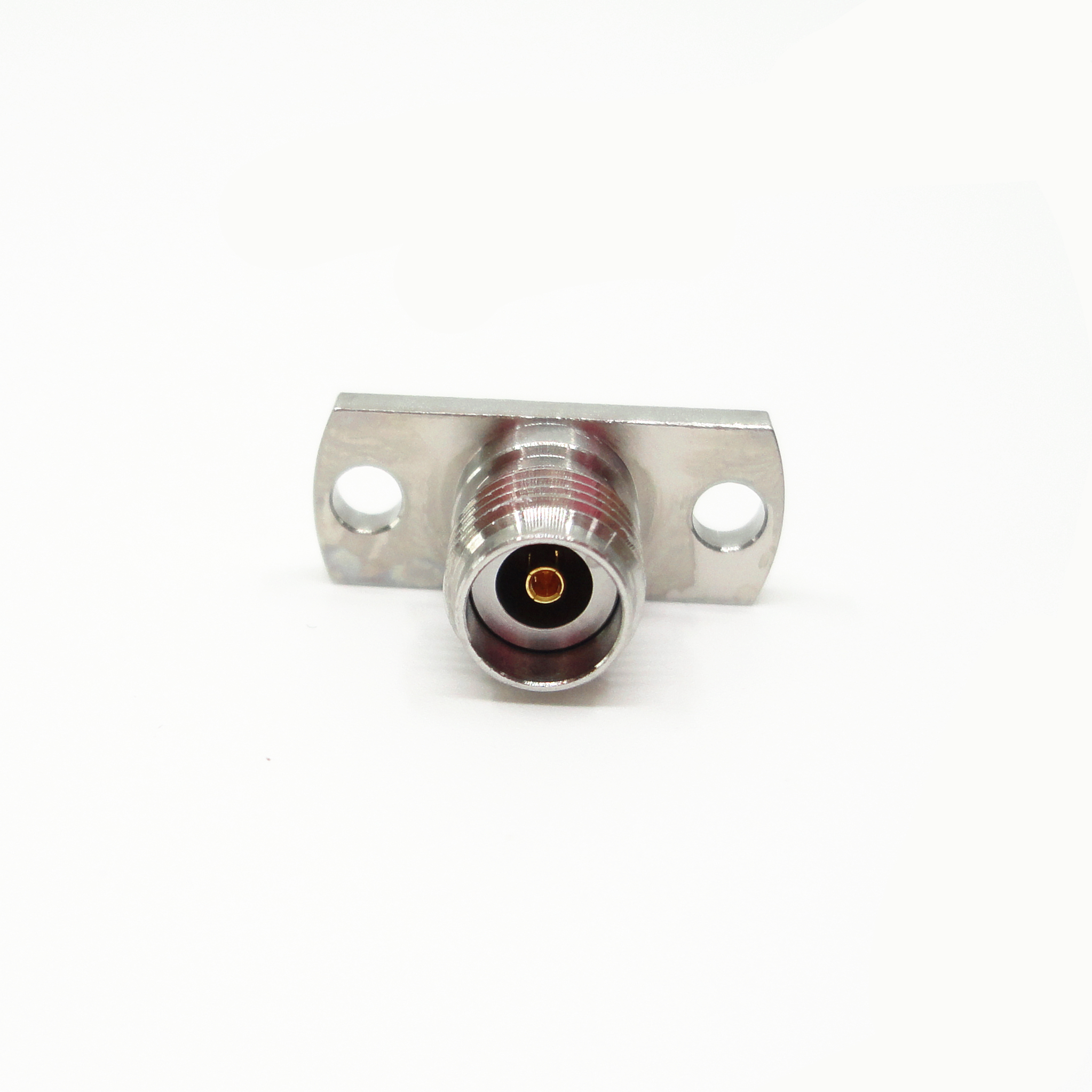

    2 Holes 2.92mm K Connector Flange Panel Mount

    2 Holes 2.92mm K Connector Flange Panel Mount


    K-type(2.92mm,SMK) millimeter wave connectors, also called 2.92mm connectors. It's one of the most popular meter wave connectors.The broad frequency range is up to 40GHz. They can be mated with SMA and 3.5mm connectors.

    These K-type (2.92mm,SMK) connectors are adopt air interface, which makes them with small in size, light in weight and very reliable in connection, etc.

    The high precision 50Ohm coaxial 2.92 mm (Female) connectors for general-purpose RF and microwave use. These high performance connectors are used in a wide variety of test and measurement settings ranging from cellular to satellite communications for the proper matching of equipment and cable interconnect. The connectors are constructed from a durable stainless steel and are designed to withstand repeated use. They feature an air dielectric with a loss-loss plastic center conductor support.

    Specification of 2 Holes 2.92 mm K Connector Flange Panel Mount(mm):

    Impedance50Ω
    Frequency RangeDC - 40GHz
    Voltage Rating250 VRMS (Max. Sea Level)
    Dielectric Withstanding Voltage750 VRMS (Max. Sea Level)

    Voltage Standing Wave Ratio
    VSWR

    ≤ 1.05 + 0.005f
    Contact ResistanceCenter Conductor ≤ 3.0 mΩ
    Outer Conductor ≤ 2.0 mΩ
    Insulation Resistance≥ 5000 MΩ
    Inner ConductorMale plug: Brass, Gold Plated
    Female Jack: BeCu, Gold Plated
    Resilient ContactBeCu, Nickel Plated
    Body / Shell / Housing

    Brass, Gold Plated
    Stainless Steel, Passivated

    InsulatorPEI
    GasketSilicone Rubber
    Temperature-55℃ ~ +125℃
    Durability500 Cycles
    Torque0.79 ~ 1.13 N.m



    Features of 2 Holes 2.92 mm K Connector Flange Panel Mount(mm):
    • The 2.9mm connector frequency is up to 40GHz.
    • It can mate and interchange with SMA series, K series, 2.4mm, 3.5mm connectors.
    • Superior electrical performance up to 40GHz
    • It have the advantages of small volume, light weight, high use frequency, reliable connect.
    • Great for applications that require high frequency transmission
    • Connector mating interface per MIL-STD-348
    • Superior electrical performance up to 40GHz
    • Female contacts have unique three-slot construction
    • An air dielectric with a loss-loss plastic center conductor support.

    Application of 2 Holes 2.92 mm K Connector Flange Panel Mount(mm):
    * Instrumentation
    * Automotive
    * Satcom
    * Computer/LANs
    * Telecommunications
    * Avionics, radars
    * Missiles and guidance systems
    * Telecommunication systems
    * Navigation systems
    * Research centres
    * Satellite communications
