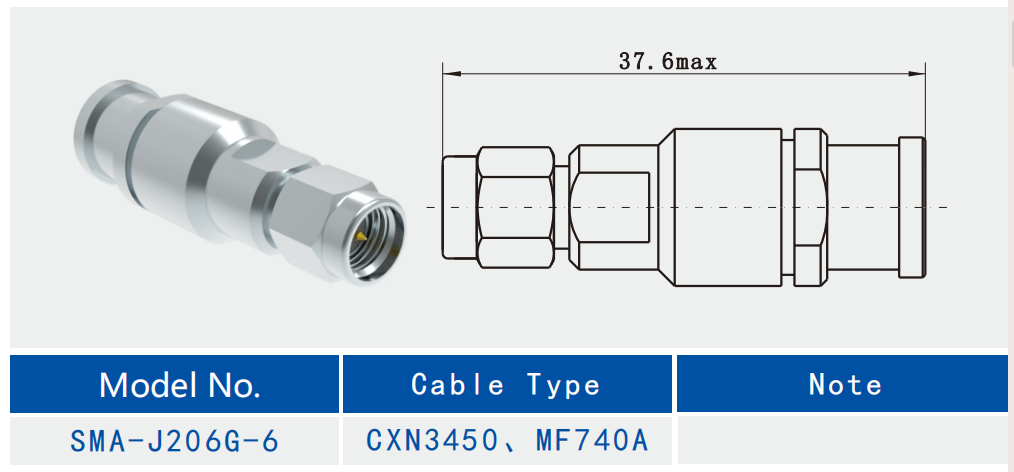

SMA Male Stainless Steel Straight RF Connector for CXN3450/MF740A
Cable
The SMA RF coaxial connector is a highly compact and high-frequency
coaxial connector engineered to meet the specifications outlined in
MIL-C-39012. It is celebrated for its versatile features, including
its petite dimensions, wide frequency bandwidth, exceptional
mechanical and electrical performance, and remarkable durability.
This connector is the top selection for RF coaxial connections and
is widely incorporated into various domains such as microwave
communications and measurement devices. The premium performance
series developed by our company is capable of accommodating
frequencies up to an impressive 20GHz, reinforcing its status as a
connector of choice for demanding high-frequency applications.
Key Features:
1. High Reliability: its high-quality design and manufacturing
standards (like MIL-C-39012), this connector is highly reliable and
suitable for demanding military and aerospace applications.
2. Mechanical Strength: The SMA connector uses a threaded
connection method, providing good mechanical strength and
durability to ensure a stable and reliable connection.
3. Compatibility: It is commonly used with coaxial cables and can
be integrated with different types of equipment, including test
equipment, communication systems, and measurement devices.
4. Environmental Resistance: SMA connectors conform to military
standards and are thus capable of operating in a variety of
environments, including extreme temperatures, humidity levels, and
vibration conditions.
Specifiacation of SMA RF Connectors:
Note:The specific data of the model are based on the data in the
product specification sheet.
| Interface according to | IEC60169-15 |
| Impedance | 50Ω |
| Freqency Range | DC to 18GHz |
| Insertion Loss | ≤0.30dB |
| VSWR | ≤1.2(DC-6GHz) |
| Insulation Resistance | ≥5000MΩ |
| Center Contact Resistance | ≤3mΩ |
| Outer Contact Resistance | ≤2mΩ |
| Mating Cycles | ≥500 |
| Temperature Range | -65-+165℃ |
| Dielectric | PTFE |
Application:
1. Satellite and Aerospace Applications: Due to their high
reliability and compliance with military standards, SMA connectors
have extensive use in satellite communications and the RF systems
of spacecraft.
2. Broadcasting and Streaming: In broadcasting and streaming
transmission equipment for television and radio, SMA connectors are
used to ensure high-quality signal transmission.
3. Radio Frequency Identification (RFID): In some high-frequency
RFID systems, SMA connectors can serve as the connecting element
between readers and antennas.
More Detail of SMA RF Coax Connectors:
Product Cataloge:
| RF Adapter |
| SMA RF Connector |
| SSMP RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| MCX/MMCX RF Connector |
| Millimeter Wave Connectors(2.4mm, 2.92mm) |
| RF Cable Assemblies |
| Waveguide to Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
