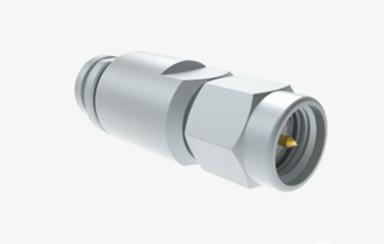

Stainless Steel SMA Male RF Coaxial Connector for MF210A/MF210B
Cable
The SMA RF coaxial connector is a highly versatile, high-frequency
coaxial connector that adheres to the MIL-C-39012 standard.
Its advantages include its compact size, broad frequency bandwidth,
superior mechanical and electrical characteristics, and remarkable
reliability.
As the most commonly used RF coaxial connector, it sees extensive
use in a myriad of applications such as microwave transmission and
measurement equipment. The premium series of connectors offered by
our company are engineered to accommodate frequencies up to 20GHz.
Key Features:
1. Mechanical Strength: Despite their small size, SMA connectors
are mechanically robust and durable.
2. Connection/Disconnection Mechanism: SMA connectors usually
utilize a threaded coupling mechanism, ensuring a reliable
connection and preventing accidental disconnection.
3. Interface Types: SMA connectors can be equipped with different
types of interfaces, such as straight through, right angle, and
panel mount, to suit various installation needs.
4. Small Size: SMA connectors are miniature connectors, making them
suitable for use in space-limited applications.
5. Frequency Range: SMA connectors are designed to handle very high
frequencies, typically operating up to a maximum of 20 GHz,
although some specific models may exceed this range.
6. Superior Performance: SMA connectors exhibit excellent
electrical performance, including low insertion loss, high return
loss, and good VSWR (Voltage Standing Wave Ratio) performance.
Specifiacation of SMA RF Connectors:
Note:The specific data of the model are based on the data in the
product specification sheet.
| Interface according to | IEC60169-15 |
| Impedance | 50Ω |
| Freqency Range | DC to 18GHz |
| Insertion Loss | ≤0.30dB |
| VSWR | ≤1.2(DC-6GHz) |
| Insulation Resistance | ≥5000MΩ |
| Center Contact Resistance | ≤3mΩ |
| Outer Contact Resistance | ≤2mΩ |
| Mating Cycles | ≥500 |
| Temperature Range | -65-+165℃ |
| Dielectric | PTFE |
Application:
1. RF Components and Modules: SMA connectors can be used to connect
various RF components, such as filters, switches, modulators, etc.
2. Measurement and Instrumentation: In RF testing and measurement,
SMA connectors are used as part of precision instruments to ensure
accurate signal transmission.
3. Laboratory and R&D: When developing new RF systems, SMA
connectors are commonly used in prototypes and experimental setups
because they offer high-frequency performance and ease of
operation.
More Detail of SMA RF Coax Connectors:
Product Cataloge:
| RF Adapter |
| SMA RF Connector |
| SSMP RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| MCX/MMCX RF Connector |
| Millimeter Wave Connectors(2.4mm, 2.92mm) |
| RF Cable Assemblies |
| Waveguide to Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us
