WR10 BJ900 To 1.0mm Female Waveguide To Coax Adapter 74GHz~110GHz End launch

The frequency of wave-guide to coax adapters processed by Elite Electronic (ELT) cover 5.4GHz-110GHz. With high reliability, small size and excellent performance, it is widely used in microwave measurement and millimeter wave equipment. The waveguide has standard rectangular and double-ridge waveguides, and non-standard waveguides can be customized according to user requirements. The coaxial end connection interface includes N, TNC, SMA, SMP,SSMP, 3.5, K (2.92), 2.4, 1.85, 1.0 and microstrip. Waveguide to coax adapters are divided into two types: end Launch and right angle launch from interface orientation. Among them, the RA launch type can also be used as a high-power structure.

Specification of 1.0/BJ900-KFE1:

Product Name	WR10 BJ900 Waveguide to 1.0mm Coaxial Adapters-End Launch
Model No.	1.0/BJ900-KFE1
Coaxial type	1.0mm
Waveguide Size	WR10 (BJ900)
Body Style	Right Angle
Frequency Range	74GHz-110GHz
SMA Impedance	50 Ohm
VSWR	1.6

Advantages:

-Our waveguide adapters are of high reliability, miniature size and excellent performance etc, which makes them extensively adopted in microwave measurement and millimeter wave devices etc.

Outline Drawing and Pictures of WR10 BJ900 to 1.0mm Female Waveguide to Coax Adapter 1.0/BJ900-KFE1:

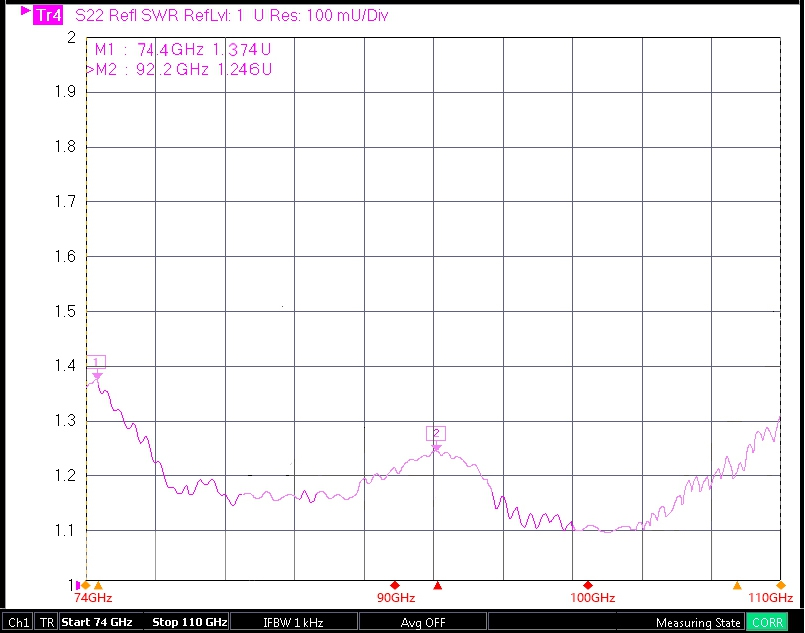

Test Plots of WR10 BJ900 to 1.0mm Female Waveguide to Coax Adapter 1.0/BJ900-KFE1:

List of Waveguide to 1.0mm Coaxial Adapters:

Model Number	Description	Note
1.0/BJ740-KF	WR12(BJ740) to 1.0mm female right angle adapters
1.0/BJ740-KFE	WR12(BJ740) to 1.0mm female end launch adapters	BJ740=WR12
1.0/BJ900-KF	WR10(BJ900) to 1.0mm female right angle adapters	BJ900=WR10
1.0/BJ900-KFE1	WR10(BJ900) to 1.0mm female end launch adapters
Custom Type	Customized sizes are acceptable

Related products of 1.0mm Waveguide to Coax Adapters of Elite Electronic:

Waveguide to Coax Adapter-ELT 2024.pdf

Cross-references of waveguide Standards

Chinese Standards	International Standards	Frequency Range (GHz)
BJ84	WR112	6.57~9.99
BJ100	WR90	8.20~12.5
BJ120	WR75	9.84~15.0
BJ140	WR62	11.9~18.0
BJ180	WR51	14.5~22.0
BJ220	WR42	17.6~26.7
BJ260	WR34	21.7~33.0
BJ320	WR28	26.3~40.0
BJ400	WR22	32.9~50.1
BJ500	WR18	39.2~59.6
BJ620	WR14	49.8~75.8
BJ740	WR12	60.5~91.9
BJ900	WR10	73.8~112

NOTE:
We have over 1,000 types of Waveguide to Coaxial Adapters for choice, if the adapter you are using is not found, please contact us with your details. ODM dimension is welcomed.
