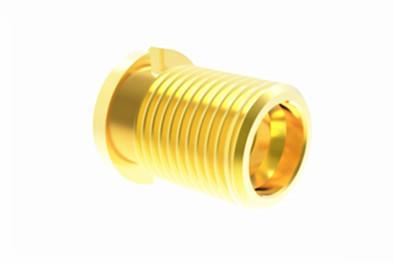

High-Performance Hermetic SMP Series: Male-to-Male RF Adapter Connector for Seamless Device Connection

SMP RF Connector Introduction

The SMP is a compact, push-on RF coaxial connector adapter that boasts. The SMP is a compact, push-on RF coaxial connector adapter that boasts a small form factor, lightweight design, excellent seismic performance, and broad operating bandwidth. It has an operating frequency range of up to 30GHz (our high-performance SMP connectors can reach 40GHz), and the plug features three interface options: full detent, limited detent, and smooth bore (including with braking). These various interface forms can accommodate the required axial or radial movement for blind mating in broadband to broadband couplers. The SMP is ideal for use in installations requiring high reliability and modular intensity.

Unit: mm

Outline Drawing of

High-Performance Hermetic SMP Series: Male-to-Male RF Adapter Connector for Seamless Device Connection

Application:

The SMP adapter is a new type of blind RF coaxial connector that provides an ideal solution for modular, intensive installations. This connector has an extremely wide operating frequency range, capable of working up to DC~40GHz. The SMP interface comes in two forms: one is an ultra-small interface with the same proportion as the MMCX connector, and the other is a conventional SMA interface. Both interfaces can operate at frequencies up to 40GHz, providing a push-in and snap-fit connection method.

NOTE:
We have over 1,000 types of SMP female male adapters for choice, if the product you are using is not found,

please contact us for full catologs. Custom dimensions is accepted.

Product Category:
1. RF Connectors, Adapters (DC to 110GHz)
2. RF & Wave-guide Cable Assemblies
3. Wave-guide to Coax Adapters
4. Integrated(RF & DC) Connectors
5. Micro Rectangular Connector(J30J,Micro D-sub)
6. Glass-to-metal Hermetic Seals, Headers,Feedtru(RF & DC)
7. Microwave Rotary Joints
8. ODM Products

Xi'an Elite Electronic Industrial Co., Ltd. is a national high-tech enterprise that specializes in R & D, manufacture and sales of RF connectors, adapters, cable assemblies, wave-guide products, glass-to-metal hermetic connectors, micro d-sub, microwave rotary joints and other microwave components. These RF/Microwave products are widely used in aerospace, aviation, navigation, 5G, satellite, communications, antennas and other important electrical systems.

AS the qualified components supplier of many national high tech projects, Elite Electronic has more than 22+ years ODM experience on Interconnect Components. With a commitment to innovation and quality, Xi'an Elite Electronic provides cutting-edge solutions that empower technological advancements and drive industry growth.

Welcome to contact and visit Elite Electronic for business relationships and mutual success!
