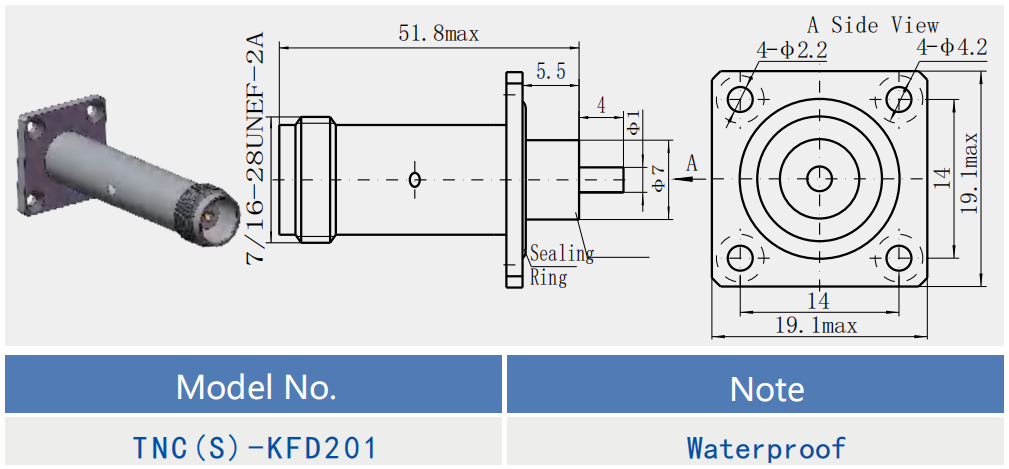

Excellent Signal Transmission TNC Female Waterproof 4 -hole Flanges PCB Mount RF Connector

Mechanical Specification

Environmental Specification:

Features:

1. Although the performance may not match industrial or high quality-grade products, these RF crimp connectors are ideal for various commercial applications.
2. The TNC series RF Electronic connector is designed as a threaded version of the BNC connector.
3. The TNC RF connectors feature screw threads for mating. They are miniature, threaded, waterproof units with a constant 50 ohm impedance that operate from DC to 11GHz.
4. There are two types of TNC connectors: standard and reverse polarity.
5. These low-cost RF connectors from China suppliers typically use die-cast and molded components.
6. The TNC series products are a type of whorl joining that has a wide working frequency range and provides reliable connections.

Application:

1. Aviation and Aerospace: TNC connectors are widely used in avionics systems for connecting antennas, transceivers, and other RF components.

2. Defense and Military: These connectors are used in military communication systems, radar systems, and other defense equipment due to their reliability and ruggedness.

3. Communication Systems: TNC connectors are employed in radio communication systems, such as two-way radios, walkie-talkies, and base stations.

4. Test and Measurement Equipment: These connectors are utilized in test equipment, oscilloscopes, spectrum analyzers, and signal generators for connecting RF cables and devices.

5. Research and Development: TNC connectors are used in research labs for connecting RF equipment and conducting experiments in the field of electronics and telecommunications.

6. Consumer Electronics: TNC connectors can be found in some consumer electronic devices, such as amateur radio equipment and ham radio sets.

NOTE:
We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.

Xi'an Elite Electronic Industrial Co., Ltd. is a national high-tech enterprise that specializes in R & D, manufacture and sales of RF connectors, adapters, cable assemblies, wave-guide products, glass-to-metal hermetic connectors, micro d-sub, microwave rotary joints and other microwave components. These RF/Microwave products are widely used in aerospace, aviation, navigation, 5G, satellite, communications, antennas and other important electrical systems.

AS the qualified components supplier of many national high tech projects, Elite Electronic has more than 22+ years ODM experience on Interconnect Components. With a commitment to innovation and quality, Xi'an Elite Electronic provides cutting-edge solutions that empower technological advancements and drive industry growth.

Welcome to contact and visit Elite Electronic for business relationships and mutual success!

Product Category:

1. RF Connectors, Adapters (DC to 110GHz)
2. RF & Wave-guide Cable Assemblies
3. Wave-guide to Coax Adapters
4. Integrated(RF&DC) Connectors
5. Micro Rectangular Connector(J30J,Micro D-sub,MDM)
6. Glass-to-metal Hermetic Seals, Headers,Feedtru(RF & DC)
7. ODM Products

Why Choose Us:

√ 22+ years experience on RF & Microwave Components
√ Qualified components supplier of more than 400 customers
√ Rich cooperation experience with national high tech projects
√ High reliable and commercial grade components for choice
√ Strict quality control under all grade standards in the industry
√ Factory area 75,000 sq.m with 1,000+ experienced staff
√ 500+ national patents with 16 production lines
√ Annual output value above US$300 million
√ 50+ series products with 100,000 types
√ Production Line Capacity: 30,000,000 PCS Per Year
√ Cleaning Workshop: Class 100,000
√ Short delivery and competitive price
√ Custom-made (ODM) orders are welcomed
√ Best-in class products
√ Excellent after-sales service
