    BNC Hermetically Sealed Female Bulkhead RF Connector Nickel Plated BeCu

    Experience Unmatched Connectivity with BNC Hermetically Sealed Female Bulkhead RF Connector


    The BNC series connector is a type of bayonet-style RF coaxial connector that adheres to MIL-C-39012 specifications. It is known for its quick and reliable connection, making it ideal for use in radio frequency systems with frequencies below 4GHz. This connector is widely utilized in various industries, including network systems, instrumentation, and computer interconnection fields.




    Specification

    Electrical Characteristics
    Impedance50 Ohm
    Frequency RangeDC~4GHz
    Rated Voltage500 VRMS (Maximum sea-level)
    Dielectrics Voltage-resistance1500 VRMS (Maximum sea-level)
    Insulation Resistance≥5000MOhm
    Contact ResistanceOuter conductor≤2.0mOhm
    Center conductor≤0.5mOhm
    VSMR≤1.3

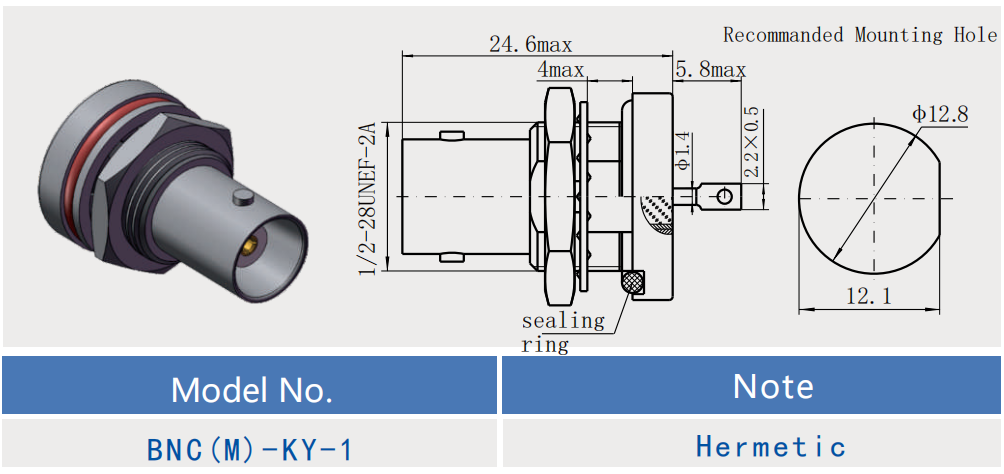

    Product Drawing


    Material & Mechanical Characteristics
    Center ConductorMale/PlugBrassGold plated
    Female/SocketSn-P bronzeGold plated
    Resilience ContactBeryllium bronzeNickel Plated
    Shell / HousingBrass,stainless steelNickel Plated
    InsulatorsPTFE
    Sealing RingSilicone Rubber
    Durability500 cycles

    RoHS CompliantYes
    Mating Cycles500Cycles
    Contact Retention10N min
    Cable Retention100N min
    Mating Force0.58N max
    Un-Coupling Force0.6 N max


    Environmental Specification:

    Operating Temperature-45 to +155Deg C
    IP Rating ( Mated )IP67


    Features:

    1. BNC connectors are small, bayonet-style connectors that allow for quick connection.
    2. They are widely used in RF systems with frequencies below 4GHz, including the transmission of analog or digital video signals, the connection of antennas for amateur radio equipment, avionics electronics, and other electronic test equipment.
    3. BNC connectors consist of a central pin, a sleeve, and a locking latch, making them compact and easy to use.
    4. While BNC connectors for video signal transmission have been largely replaced by RCA jacks in consumer electronics, RCA jacks can still be used on devices with only BNC interfaces through simple adapters.


    Application:

    1. BNC connectors are used for the transmission of RF signals, including analog or digital video signal transmission, antenna connections for amateur radio equipment, avionics electronics, and other electronic test equipment connections.
    2. In the consumer electronics field, while BNC connectors for video signal transmission have largely been replaced by RCA jacks, RCA jacks can still be used on devices with only BNC interfaces through simple adapters.
    3. BNC plugs are standard coaxial cable connectors and are commonly used in video surveillance and network engineering to achieve anti-interference connections between devices and cables or between cables and devices.
    4. BNC connectors come in two versions: 50Ohm and 75Ohm, each designed for different applications. For example, video surveillance uses BNC connectors with a characteristic impedance of 75Ohms, while network cables use BNC connectors with a characteristic impedance of 50Ohms. When a 50Ohm connector is connected to other impedance cables, there is less chance of transmission errors. It is important to note that connecting a 50Ohm plug to a 75Ohm receptacle may damage the receptacle if done incorrectly.


    NOTE:
    We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
