SSMP / SMPM Male Right Angled PCB Mount Full Detent RF Connector DC 50GHz

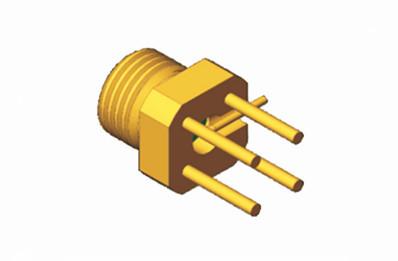

SSMP/SMPM Male Right Angled PCB Mount Full Detent RF Connector

SMPM is a miniature push-in RF coaxial connector that features small size (compared to mini SMP), lightweight, and wide operating bandwidth. It is suitable for board-to-board connector coupling in modular dense installations. The plug has two interface types: full detent and unthreaded hole, which are ideal for intensive modular installations.

Specification

Electrical Characteristics
Impedance	50Ω
Frequency Range	DC~50GHz
Rated Voltage	170VRMS*
Dielectrics Voltage-resistance	500VRMS*
Insulation Resistance	≥5000MΩ
Center Resistance	Outer conductor		Normally≤3.5mΩ, Hermetic≤5mΩ
	Center conductor		Normally≤8mΩ , Hermetic≤30mΩ
	DC~18GHz	18~26.5GHz		26.5~40GHz	40~50GHz
VSWR	≤1.25	≤1.3		≤1.4	≤1.5
Material & Mechanical Characteristics
Center Conductor	Male		Tin Phosphor Bronze/Kovar, gold Plated
	Female		Beryllium bronze, gold plated
Elastic Contact	Beryllium bronze, Gold plated/Passivated
Shell and other Metal Parts	Beryllium Bronze/Kovar/Stainless Steel
Insulators	Glass sintering/PTFE/PEI
Hermetic Product Leakage Rate	≤1.01325x10-3.Pa.cm3/S

Features:

1, miniaturised design: SMPM connectors are featuring small size and light weight. These microminiature RF coaxial connectors are mainly used for connections between boards within various military equipment, allowing for high-density installations.
2, SMPM connector is suitable for microwave, remote communication, wireless field of a variety of RF cable or microstrip.
3, good electrical characteristics: SMPM connectors have excellent electrical characteristics and minimum mechanical size. in addition, its standard impedance is 50Ω.
4, a wide range of applications: with wide-band characteristics, small size and excellent performance, this series of products become many market areas, such as high-speed digital test and RF test, industrial, mobile communications, aerospace in the field of new solutions.

Detail Picture of SSMP/SMPM Male Right Angled PCB Mount Full Detent RF Connector(mm):

Application:

*Network

*Satellite communication

*PC/LAN

*Base station

*Outdoor facilities

*Automobile

*Jumper insertion

*Basic facilities

*Radar, microwave

*Telecommunications

*Mobile communication

*Instrumentation

*Radio and television antenna system

*RF test and measurement boards

*High-speed digital component test

NOTE:
We have over 10,000 types of SMPM RF Coaxial Connector, if the connector you are using is not found, please contact us with your details.
