SSMP Female Gold Plated 2-hole Flange RF Connector for CXN3506/MF108A Cable

Ask Lasest Price
Brand Name :	ELT (Elite)
Model Number :	SSMP-KF506-3
Certification :	ISO-9001-2015
Price :	Negotiable
Payment Terms :	Western Union, L/C, T/T
Supply Ability :	1,000,000pcs per month
Delivery Time :	Within 5-7 workdays(for stocks)

Add to Cart

Product Details
Company Profile

SSMP Female Gold Plated 2-hole Flange RF Connector for CXN3506/MF108A Cable

The SSMP interconnect system utilizes a floating female-to-female adapter, commonly known as a "bullet," to facilitate the stacking of boards equipped with an SSMP male PCB connector. The robust construction and capacity to tolerate radial and axial misalignment enable a blind-mate interconnect solution that can endure numerous mating/unmating cycles without any deterioration in electrical performance.

Specification

Note:The specific data of the model are based on the data in the product specification sheet.

Electrical Characteristics
Impedance	50Ω
Frequency Range	DC~50GHz
Rated Voltage	170VRMS*
Dielectrics Voltage-resistance	500VRMS*
Insulation Resistance	≥2000MΩ
Center Resistance	Outer conductor		Normal≤3.5mΩ, Sealing≤5mΩ
	Center conductor		Normal≤8mΩ, Sealing≤30mΩ
	DC~18GHz	18~26.5GHz		26.5~40GHz	40~50GHz
VSWR	≤1.25	≤1.3		≤1.4	≤1.5
Material & Mechanical Characteristics
Center Conductor	Male		Sn-P Bronze/Kovar, Gold plated
	Female		Beryllium bronze, Gold plated
Elastic Contact	Beryllium bronze Gold plated
Shell and other Metal Parts	Brass/Kovar Gold plated Stainless steel Passivation
Insulators	Glass sintering/PTFE/PEI
Hermetic Product Leakage Rate	≤1.01325×10-3Pa·cm3/s

Features

1. High-Performance Computing (HPC): For HPC applications requiring large amounts of memory and high-speed data access, SSMP connectors offer an efficient way to configure high-capacity memory solutions.
2. Industrial and Medical Devices: In space-constrained industrial and medical applications, SSMP connectors help designers integrate more functionality into a smaller space while maintaining reliability and durability.

3.Telecommunications Equipment: Wireless and wired communication equipment can use SSMP connectors to increase spectral processing capabilities and signal processing abilities, supporting more complex communication protocols and higher data transfer speeds.

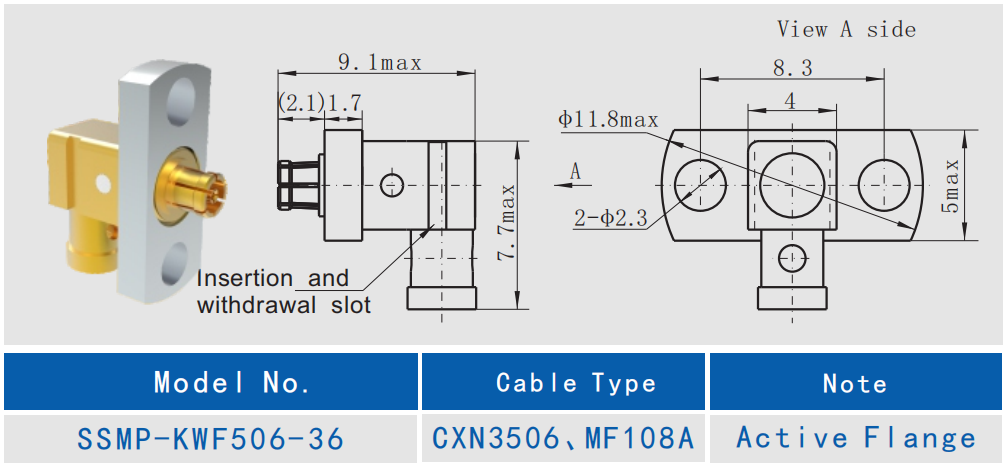

Detailed Drawing

Application:

1. Embedded Systems: In embedded systems, SSMP connectors can be used to increase I/O capabilities, enabling the system to handle more input/output operations and improve overall performance.

2. Storage Solutions: In the storage domain, SSMP connectors can be used to connect more storage modules, thereby increasing storage capacity and access speeds.
