SMP Flange Mount Female Straight RF Connector for CXN3506/MF108A
Cable
SMP is a miniature push-on RF coaxial connector that features a
small volume, lightweight design, outstanding seismic performance,
and a wide operating bandwidth. It is capable of handling operating
frequencies up to 30GHz (our high-performance SMP connectors can
achieve 40GHz). The plug offers three interface options: full
detent, limited detent, and an unthreaded hole (including with
braking). These various interface forms can accommodate the
necessary axial or radial movement required for blind mating in
broad-to-broad connector couplings. SMP connectors are suitable for
installation scenarios that demand high reliability and modular
density.
Features for SMP Connector:
1. Compact Size: SMP connectors are designed to be extremely
compact, making them ideal for applications where space is at a
premium.
2. Lightweight: Due to their miniaturized design, SMP connectors
are lighter compared to other types of RF connectors.
3. Excellent Shock Resistance: The mechanical design of SMP
connectors enables them to withstand vibrations and impacts, making
them suitable for high-shock environments.
4. Broad Operating Bandwidth: SMP connectors support a wide
frequency range, with standard operation up to 30GHz, and some
products extending up to 40GHz.
5. Versatile Interface Options: SMP plugs offer three different
interface configurations—full detent, limited detent, and smooth
bore (including with brakes)—to accommodate various connection
needs.
Specification
Note:The specific data of the model are based on the data in the
product specification sheet.
| Electrical Characteristics |
| Impedance | 50Ω |
| Frequency Range | DC~40GHz |
| Rated Voltage | 170VRMS* |
| Dielectrics Voltage-resistance | 500VRMS* |
| Insulation Resistance | ≥2000MΩ |
| Center Resistance | Outer conductor | Normal≤2.5mΩ, Sealing≤4mΩ |
| Center conductor | Normal≤6mΩ, Sealing≤26mΩ |
| VSWR | ≤1.3 |
| Material & Mechanical Characteristics |
| Center Conductor | Male | Sn-P Bronze,gold plated |
| Female | Beryllium bronze, gold plated |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s |

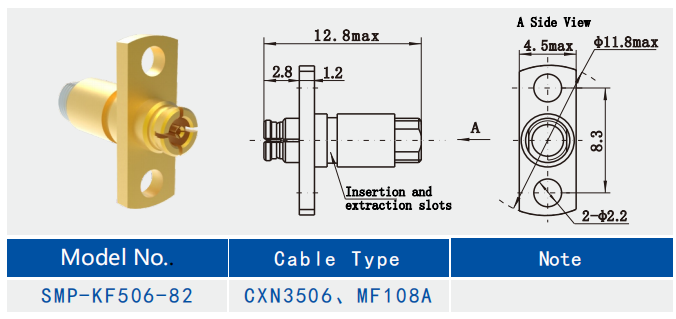

Detailed Drawing of SMP Flange Mount Female Straight RF Connector for CXN3506/MF108A
Cable:
Applications
1. Wireless Communication: SMP connectors are frequently used in
the RF sections of mobile communication base stations, including
wireless local area networks (WLANs), cellular networks, and other
RF transmission systems.
2. Test Equipment: In the test and measurement industry, SMP
connectors are used in test fixtures, network analyzers, spectrum
analyzers, and other precision measurement equipment because they
can provide a stable signal path.
3. Satellite Communication: SMP connectors are suitable for
satellite communication equipment, including the RF components of
ground stations and satellite links, as they help ensure signal
integrity.
