Brass SMP Female Right Angle Flange Mount RF Socket for
CXN3506/MF108A Cable
The SMP interface empowers design engineers to enhance both the
performance and intricacy of their designs while concurrently
optimizing the form factory.
The SMP interconnect series utilizes a floating female-to-female
adapter (frequently called a bullet) to facilitate the stacking of
boards equipped with SMP male connectors and PCB connectors. This
robust construction endows the product line with the capacity to:
*Endure radial and axial misalignments
*Resist deterioration in electrical performance over multiple
mating and unmating cycles
Note:The specific data of the model are based on the data in the
product specification sheet.
| General Specification for SMP Connector Adapter |
Impedance | 50Ω |
Frequency Range | DC~40GHz |
Rated Voltage | 170VRMS(at sea level) |
Dielectrics Voltage-resistance | 500VRMS(at sea leavel) |
Insulation Resistance | ≥5000MΩ |
Contact Resistance | Outer conductor | normal≤2.5mΩ, hermetically sealed ≤4mΩ |
Center conductor | normal≤6mΩ, hermetically sealed ≤26mΩ |
| Frequency Range | DC~18GHz | 18~26.5GHz | 26.5~40GHz |
| VSWR for straight connector | ≤1.25 | ≤1.3 | ≤1.4 |
| VSWR for right angel connector | ≤1.3 | | |
| VSWR for adapter | ≤1.25 | ≤1.3 | ≤1.4 |
| VSWR other | ≤1.3 | | |
| Center Conductor | Male | Tin Phosphor Bronze/Kovar Alloy | gold plated |
| Female | beryllium bronze | gold plated |
Elastic Contact | beryllium bronze | gold plated |
Shell and other Metal Parts | brass/beryllium bronze/Kovar Alloy/copper alloy stainless steel
passivated |
Insulators | glass sintering/PTFE/PEI |
Leakage Rate for hermetically sealed connector | 1.01325×10-3 Pa·cm3 /s |

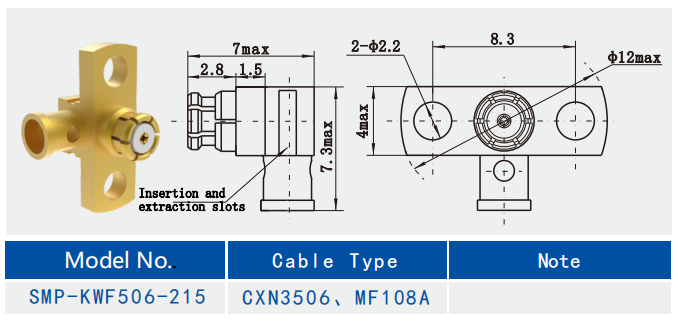

Outline Drawing of Brass SMP Female Right Angle Flange Mount RF Socket for
CXN3506/MF108A Cable
Related SMP female connectors
1.
2.
3.
4.
Install Introduction:
Application:
1. Wireless Communication Devices: In mobile phones, wireless
routers, wireless gateways, and other portable or fixed wireless
communication devices, SMP connectors are used for antenna
connections.
2. Test and Measurement: SMP connectors are found in RF test and
measurement instruments such as network analyzers, spectrum
analyzers, and signal generators to ensure precise signal
transmission.
3. IoT Devices: In various sensors, smart home appliances,
industrial automation controllers, and other IoT applications, SMP
connectors provide a small and reliable interconnection solution.
4. Broadband Applications: Given their good bandwidth performance,
SMP connectors are suitable for broadband signal distribution and
transmission, such as in CATV and fiber-optic communication systems
for signal routing.
NOTE:
We have over 1,000 types of SMP female male adapters for choice, if the product you are using is not found,
please contact us for full catologs. Custom dimensions is accepted.
