Straight SMP Female Gold Plated RF Socket for CXN3657/MF151A

SMP is a subminiature push-on or snap coupling RF coaxial connector, which features small size, light weight, excellent seismic performance, and wide operating bandwidth. Its operating frequency can reach up to 30GHz (our high-performance SMP connector can even extend to 40GHz), and the plug offers three interface forms: full detent, limited detent, and smooth bore (including with braking). PCB mount, cable mount, and in-series adaptors provide interconnect solutions for board-to-board, blind mating, and rack-and-panel applications while maintaining package density. It is suitable for installation situations requiring high reliability modular integration.

Specification

Note:The specific data of the model are based on the data in the product specification sheet.

Features and Benefits

1. Miniaturization: SMP connectors are designed to be small, making them ideal for applications where space is at a premium.

2. Lightweight: Due to their miniaturized design, SMP connectors are typically lighter than other types of RF (Radio Frequency) connectors.

3. Excellent Shock Resistance: SMP connectors are designed to withstand vibrations and mechanical shocks, thus they are well-suited for use in harsh environments.

4. Broad Operating Bandwidth: SMP connectors can handle a wide range of frequencies, with standard versions reaching up to 30GHz, and high-performance models extending up to 40GHz.

Applications

SMP connectors are highly favored for their compact size, lightweight nature, excellent shock resistance, broadband performance capabilities, and flexible mounting options in various high-frequency applications where space is critical, such as wireless communications, test equipment applications.

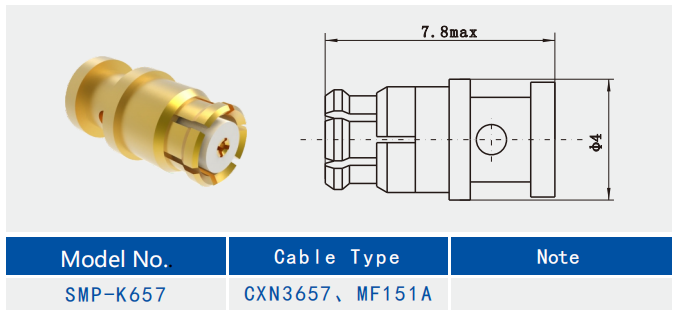

Detailed Drawing

Product Cataloge:

NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
