ASMP Male PCB Mount High Performance Full Detent RF Connector
ASMP is an innovative blind mate RF connector that shares the same
structure and application method as SMP. It boasts an outline
dimension approximately 22% larger than its SMP counterpart, with a
transmitted power capacity that is significantly higher by about
30% to 50%. This makes it highly suitable for board-to-board
connections, modular dense packaging, and scenarios requiring high
power handling. The male SMP connector offers two interface designs
- full detent and smooth bore, while the female connector features
a singular interface compatible with all types of male connectors.
Note:The specific data of the model are based on the data in the
product specification sheet.
| General Specification for SMP Connector Adapter |
Impedance | 50Ω |
Frequency Range | DC~40GHz |
Rated Voltage | 170VRMS(at sea level) |
Dielectrics Voltage-resistance | 500VRMS(at sea leavel) |
Insulation Resistance | ≥5000MΩ |
Contact Resistance | Outer conductor | normal≤2.5mΩ, hermetically sealed ≤4mΩ |
Center conductor | normal≤6mΩ, hermetically sealed ≤26mΩ |
| Frequency Range | DC~18GHz | 18~26.5GHz | 26.5~40GHz |
| VSWR for straight connector | ≤1.25 | ≤1.3 | ≤1.4 |
| VSWR for right angel connector | ≤1.3 | | |
| VSWR for adapter | ≤1.25 | ≤1.3 | ≤1.4 |
| VSWR other | ≤1.3 | | |
| Center Conductor | Male | Tin Phosphor Bronze/Kovar Alloy | gold plated |
| Female | beryllium bronze | gold plated |
Elastic Contact | beryllium bronze | gold plated |
Shell and other Metal Parts | brass/beryllium bronze/Kovar Alloy/copper alloy/stainless steel
passivated |
Insulators | glass sintering/PTFE/PEI |
Leakage Rate for hermetically sealed connector | 1.01325×10-3 Pa·cm3 /s |
Features:
Single Interface Female: The female ASMP connector has a single
interface that can mate with any type of male connector, ensuring
compatibility across different interface styles.
Space-Efficient Design: With its larger outline, it still
accommodates modular intensive mounting, indicating that it is
designed to save space while providing high-density interconnect
solutions.
Board-to-Board Connections: The design meets well for
board-to-board connections, which is essential for compact
electronic assemblies where space is at a premium.

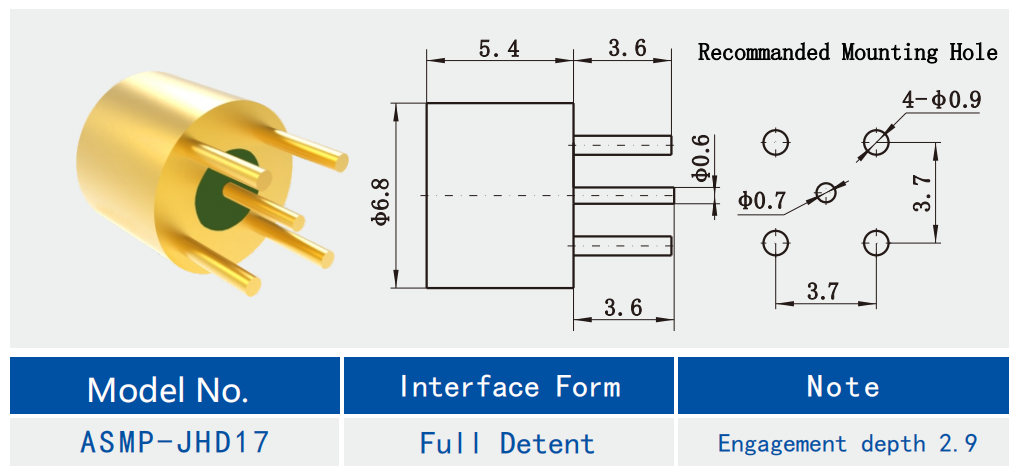

Outline Drawing of ASMP Male PCB Mount High Performance Full Detent RF Connector
