SMP Full Detent RF Connector 2.79in Interface 500VRMS* Rated Voltage

SMP Series 2-Hole Male Flange RF Connector with Full Detent and Deep 2.79 Inch Interface

SMP RF Connector Introduction

The SMP interface is a compact connector, measuring at the same scale as MMCX connectors, but featuring a frequency range of DC to 40GHz. This interconnect series utilizes floating female-to-female adapters (commonly referred to as bullets) for stacking boards equipped with SMP male PCB connectors. The durable structure and ability to accommodate radial and axial misalignment enable blind interconnection solutions. The SMP interface is commonly employed in miniaturized high-frequency coaxial modules.

Features and Benefits

Frequency Range: DC - 40GHz
Industry standard per MIL-STD-348
Gold plated & passivated stainless steel
Push-on or snap coupling
Male and Female, Straight and Right Angle choice
Normal type and hermetic seals Flange mount & Thread-In Mount choice
The plug has three interface form-full detent, limited detent and smooth bore(including with braking).
Custom connectors available

Specification

Electrical Characteristics
Impedance	50Ω
Frequency Range	DC~40GHz
Rated Voltage	170VRMS*
Insulation Resistance	≥2000MΩ
Dielectrics Voltage-resistance	500VRMS*
Center Resistance	Outer conductor	Normal≤2.5mΩ, Sealing≤4mΩ
	Center conductor	Normal≤6mΩ, Sealing≤26mΩ
VSWR	≤1.3

Material & Mechanical Characteristics
Center Conductor	Male	Sn-P Bronze, gold plated
Center Conductor	Female	Beryllium bronze, gold plated
Elastic Contact	Beryllium bronze	Gold plated
Shell and other Metal Parts	Brass Stainless steel	Gold plated Passivation
Insulators	Glass sintering/PTFE/PEI
Hermetic Product Leakage Rate	1.01325×10-3Pa·cm3/s

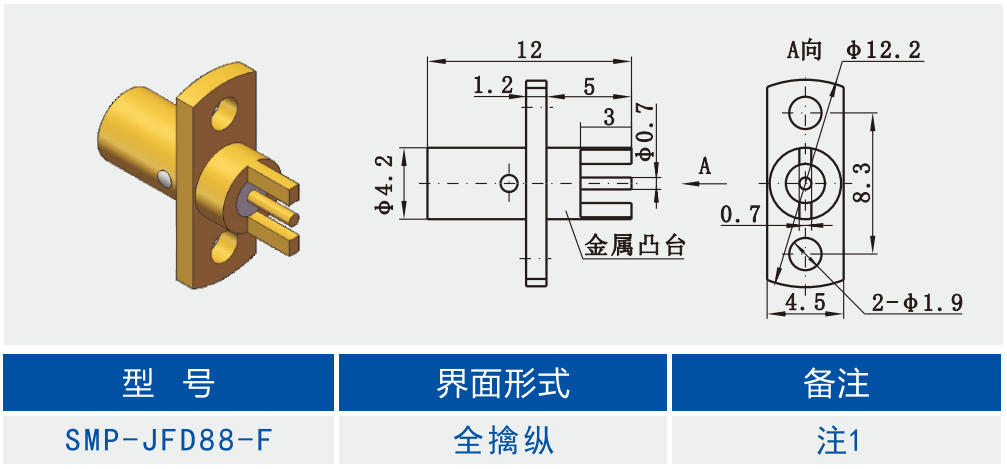

Detailed Drawing of

SMP Series 2-Hole Male Flange RF Connector with Full Detent and Deep 2.79 Inch Interface:

Model Number	Interface Style	Note
SMP-JFD89	Limited Detent
SMP-JFD97G	Limited Detent
SMP-JFD98G	Limited Detent
SMP-JFD101	Limited Detent

Applications

Wireless communication: RF coaxial connectors are widely used in wireless communication systems, such as mobile communication base stations, satellite communication equipment and radar systems. They are used to connect transmitters, receivers and antennas for signal transmission and distribution.

NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
