    Male SMP Stainless Steel 4 Holes Flange Mount RF Connector With Insulation Convex Surface

    Durable Male SMP Stainless Steel 4 Holes Flange Mount RF Connector with Insulation Convex Surface


    SMP RF Connector Introduction

    The SMP interface is a small form-factor connector that measures the same as an MMCX connector, but it has a broader frequency range of DC to 40 Ghz. The SMP interconnect series utilizes floating female-to-female adapters (commonly referred to as bullets) for stacking boards with SMP male PCB connectors. This resilient structure and capacity to tolerate misalignment in both radial and axial directions enable blind interconnection solutions. It is commonly employed in compact high-frequency coaxial modules.

    Features and Benefits

    The connector is designed according to the industry standard MIL-STD-348. It has a frequency range of DC to 40GHz and is made of gold plated and passivated stainless steel. The coupling can be either push-on or snap type. There are options for male and female connectors, as well as straight and right angle versions. Additionally, there are choices for normal type and hermetic seals, with flange mount and thread-in mount options. The plug comes in three interface forms: full detent, limited detent, and smooth bore (including those with braking). Custom connectors are also available upon request.

    Specification

    Electrical Characteristics
    Impedance50Ω
    Frequency RangeDC~40GHz
    Rated Voltage170VRMS*
    Dielectrics Voltage-resistance500VRMS*
    Insulation Resistance≥2000MΩ
    Center ResistanceOuter conductorNormal≤2.5mΩ, Sealing≤4mΩ
    Center conductorNormal≤6mΩ, Sealing≤26mΩ
    VSWR≤1.3
    Material & Mechanical Characteristics
    Center ConductorMaleSn-P Bronze,gold plated
    FemaleBeryllium bronze, gold plated
    Elastic ContactBeryllium bronzeGold plated
    Shell and other Metal PartsBrass Stainless steelGold plated Passivation
    InsulatorsGlass sintering/PTFE/PEI
    Hermetic Product Leakage Rate1.01325×10-3Pa·cm3/s

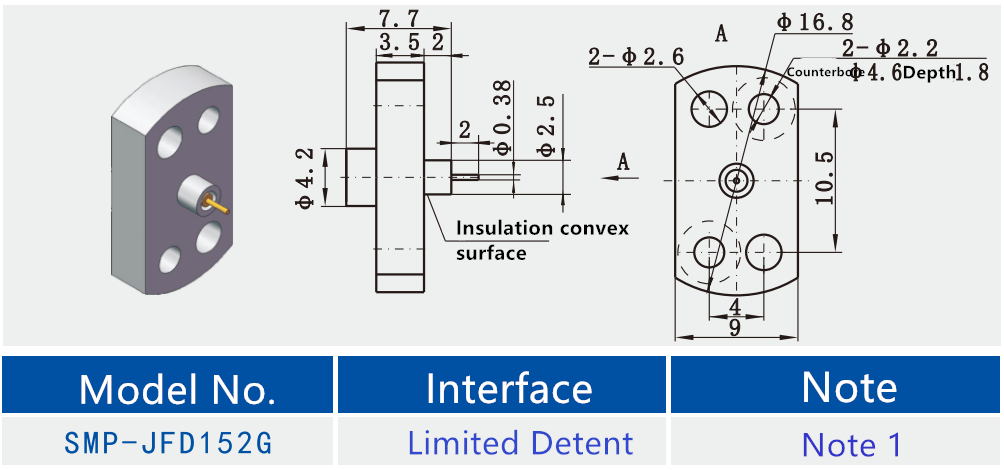

    Detailed Drawing of

    Durable Male SMP Stainless Steel 4 Holes Flange Mount RF Connector with Insulation Convex Surface:

    Applications:

    SMP stainless steel plugs are highly shielded micro-pluggable coaxial cable connectors that are suitable for applications up to 40GHz. SMP (Super Miniature Push-On) connectors offer push-on or snap-in types for easy installation. SMP connectors are typically made of stainless steel, beryllium copper, and PTFE materials, providing excellent durability and reliability.

    Product Cataloge:

    RF Cable Assemblies
    Waveguide to Coaxial Adapter
    Glass-to-metal Hermetic Seals
    J30J Series Connector
    Microwave Rotary Joints
    RF Adapter
    SMA/SSMA RF Connector
    SMP/SSMP RF Connector
    N Type RF Connector
    TNC RF Connector
    MCX/MMCX RF Connector
    BNC RF Connector
    Millimeter Wave Connectors(2.4mm, 2.92mm)


    NOTE:
    We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your detai
